64
WHEEL
(a) Front wheel
Removal
•
Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
Refer to the safety precautions on (page 44).
•

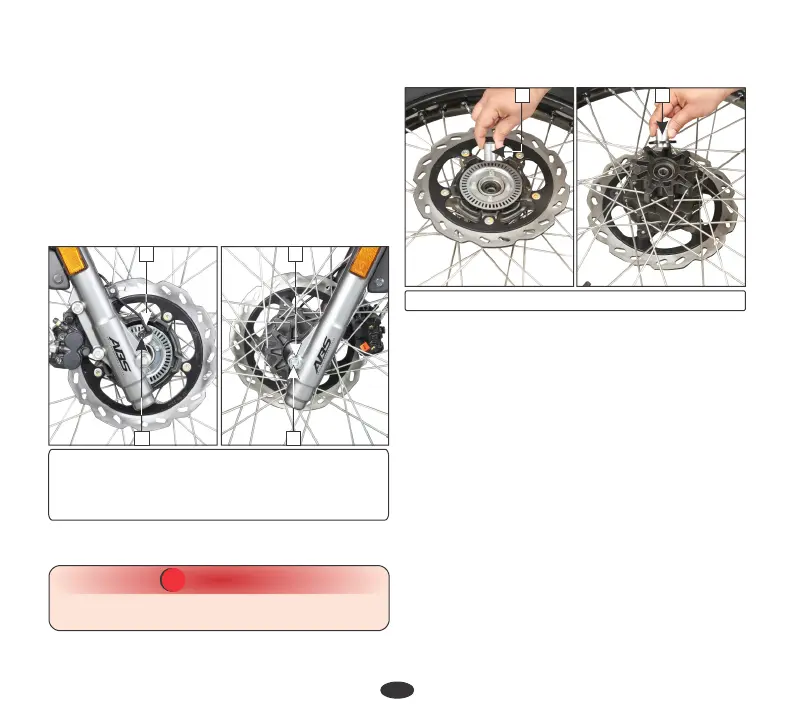

Remove the wheel speed sensor bolt (1)
from right fork leg and disconnect the wheel
speed sensor (2).
(1) Wheel speed sensor bolt
(2) Wheel speed sensor
(3) Front axle nut
(4) Axle
•
Remove the front axle nut (3), remove the
axle (4) and wheel.
CAUTION
!!
Do not operate front brake lever when the
wheel is removed.
2
1
3
4
•
Insert the disc (2) between the pads in the
caliper assembly (3). When installing the
wheel, carefully fit the brake disc between
the brake pads to avoid damage to the pads.
•
After installing the wheel apply the brake
several times and then check if the wheel
rotates freely. Recheck the wheel if the
brake drags or if the wheel does not rotate
freely.
•
Install the side collars (1) to both sides of
the wheel hub.
TORQUE : 6.0 kgf-m
•
Install the wheel speed sensor (5).
Installation
•
Tighten the front axle nut (4) to the
specified torque.
•
Remove the side collars (5) from both sides
of the wheel.
(5) Side collars
5 5
