63
WARNING
!!
Always apply front and rear brakes
simultaneously to avoid skidding of vehicle.
SUSPENSION
• Check the front forks by locking the front
brake and pumping the front fork up and
down vigorously. The suspension action
should be smooth and there should be no oil
leakage.

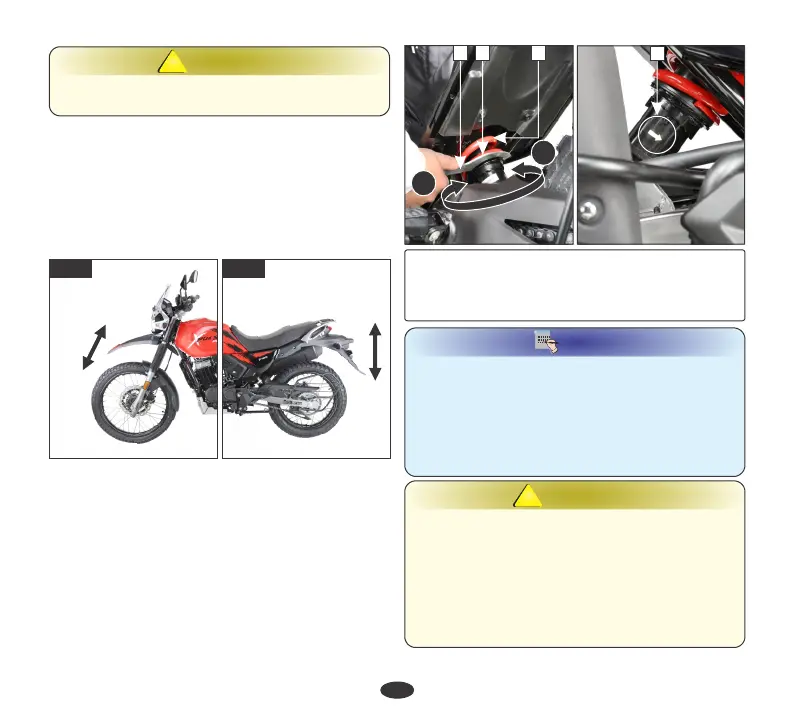

Front and rear suspension inspection
Front Rear
Rear mono shock absorber adjustment
•
Check the rear mono shock absorber by
pushing hard downwards on rear grip while
the vehicle is not parked on stand. The
suspension action should be smooth and
there should be no oil leakage.
• In direction B: Stiffer
Rear mono shock absorber adjustment can be
made according to the load/road conditions.
• In direction A: Softer
NOTE
•
To adjust the rear mono shock absorber (1),
use the rear shock absorber adjustment tool
[Pin spanner (2) with handle (3)] available in
the tool kit.
•
Rear mono shock absorber arrow mark
sticker (4) to be pointing towards vehicle
front side during assembly on vehicle.
(1) Rear mono shock absorber
(2) Pin spanner (3) Pin spanner handle
(4) Arrow mark sticker
(A) Stiffer (B) Softer
WARNING
!!
This assembly contains high-pressure
nitrogen gas. Any attempt to disassemble or
refill this shock assembly may result in an
explosion, causing serious injury. Exposure to
flame or puncture may also result in an
explosion. Replacement and disposal should
only be done by your Authorised Hero
MotoCorp workshop.
A
B
123
4
