52

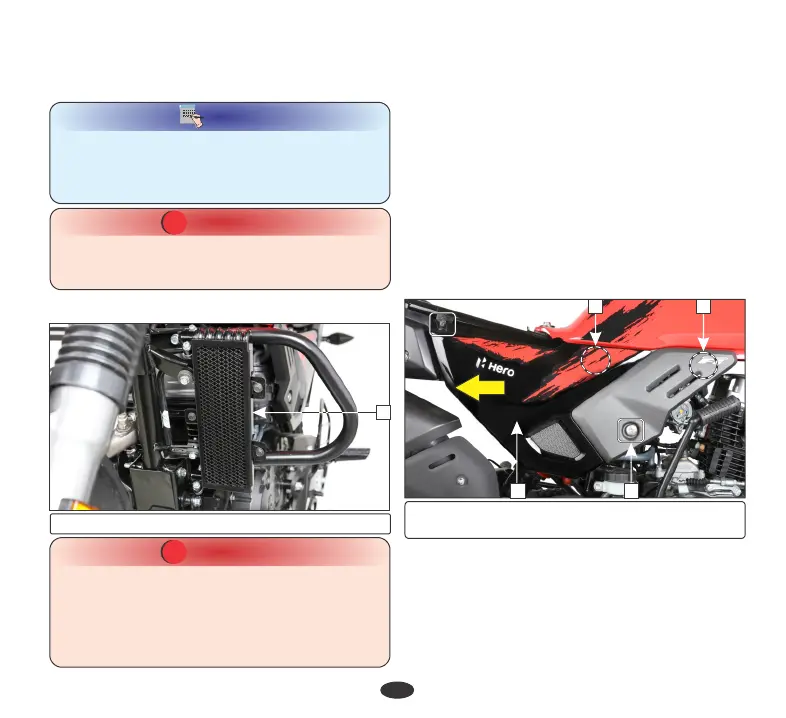

ENGINE OIL COOLER
(1) Engine oil cooler
CAUTION
!!
•
No hard objects to be used for cleaning the
engine oil cooler (1), otherwise the fins will
get damaged.
•
No high pressure washing of the oil cooler as
it may damaged the fins, any physical
contact with fins is to be avoided.
1
• Ensure to replace gasket & dowel pin with
new one once removed
• Clean filters as specified in the maintenance
schedule.
NOTE
43
2 1
(1) Right side cover screws (2) Side cover
(3) Lug/Grommet (4) Tab/Slot
Air cleaner element inspection
AIR CLEANER
Refer to the safety precautions (page 44).
• Remove the right side cover screws (1), side
cover (2) by releasing the lug from the
grommet (3) and slide the cover towards
the rear to release tab from the slot (4).
• Remove the seat (page 35).
The air cleaner element is of dry paper pleated
type, it should be serviced at regular intervals
(page 45). Service more frequently when
riding in unusually wet or dusty areas.
• Remove the air cleaner cover screws (5)
and the cover (6).
•
Remove the air cleaner element (7) from
air cleaner housing (8).
• Fill the crankcase with clean engine oil as
per specification (page 45).
• Install the kick starter pedal.
Ensure that adequate care should be taken
while removing the oil cooler hoses to avoid
any damage or leakage.
CAUTION
!!
