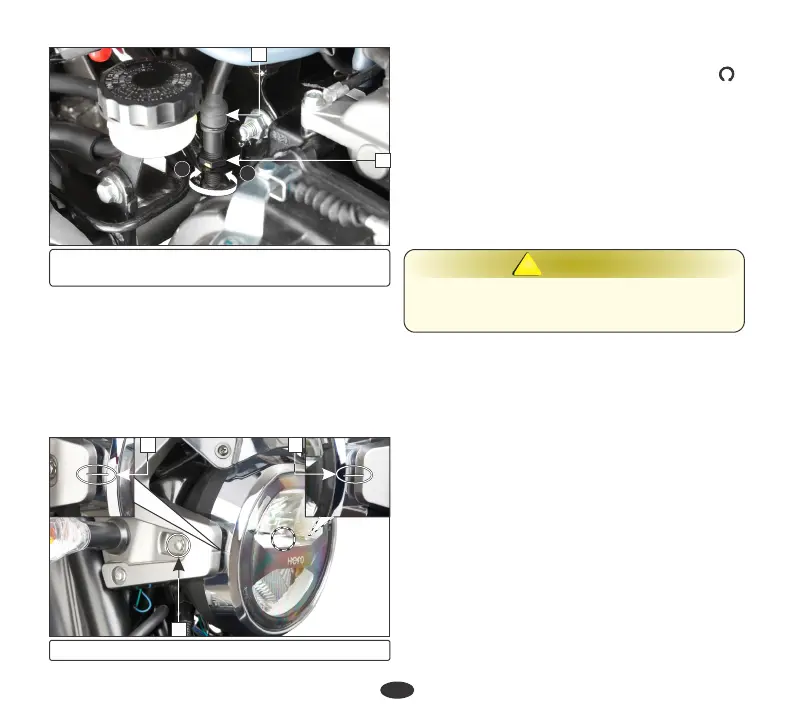

(1) Stop lamp switch (2) Adjusting nut
(A) Advance (B) Retard
A
B
HEADLAMP FOCUS ADJUSTMENT
Headlamp is factory pre-set. However in case
of adjustment required, please follow the steps
as given below:
• Headlamp adjustment is done by loosening
the bolts (1) located on both the sides of the
headlamp assembly.
2
(1) Adjusting bolts (2) Index marks
2 2
1
This vehicle is equipped with a catalytic
converter (1) in the muffler to meet the
emission norms.
The catalytic converter contains precious
metals that serve as catalysts, promoting
chemical reactions to convert the exhaust
gasses without affecting the metals. The
catalytic converter acts on HC, CO and NOx.
The catalytic converter must operate at a high
temperature for the chemical reactions to take
place. It can set on fire any combustible
material that come near it. Park your vehicle
away from high grasses, dry leaves, or other
flammable material.
A defective catalytic converter contributes to
air pollution and can impair your engine’s
performance.
CATALYTIC CONVERTER
WARNING
!!
An improperly adjust headlamp may blind
oncoming rider/driver or it may fail to light the
road for a safe distance.
•
Adjust the headlamp by loosening the bolts
(1) and moving the headlamp assembly up
and down for correct focus adjustment.
•
Park the vehicle on the level ground.
•
Turn the ignition switch to “ON” ( )
position and start the engine.
•
Align the headlamp casing index marks (2)
to the index mark on the headlamp
assembly cover.
•
After adjusting the headlamp, tighten the
headlamp adjusting bolt.
1
