HERO XPULSE 200 PROGRAMMED FI - FUSE REPLACEMENT

70

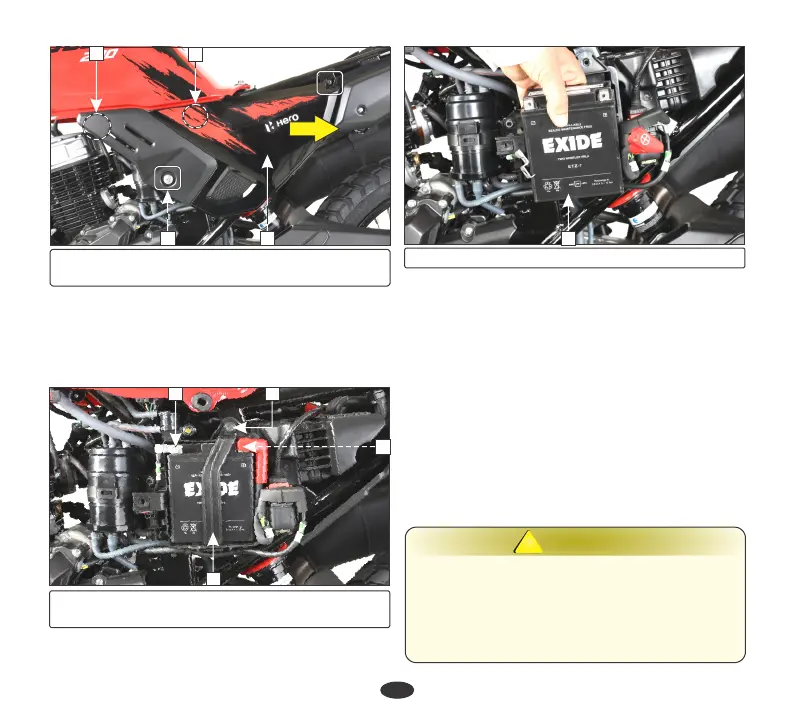

• Remove the battery clamp bolt (7) and the
battery clamp (8).
• Disconnect the (-)ve terminal lead (5) from
the battery first, then disconnect the (+)ve
terminal lead (6).
(5) (-)ve terminal (6) (+)ve terminal
(7) Battery clamp bolt (8) Battery clamp
5
6
(1) Right side cover screws (2) Side cover
(3) Lug/Grommet (4) Tab/Slot
2
3
1
4
7
8
(9) Battery
Battery installation
Ÿ Reinstall in the reverse order of removal. Be
sure to connect the (+)ve terminal first, then
the (-)ve terminal.
Ÿ Check all bolt and other fasteners are secure
properly.
FUSE REPLACEMENT
Refer to the safety precautions on (page 44).
Fuse box (1)
Main (2) : , fuse 15A, 10A 10A and 10A
Spare fuse 15A 10A (3) : and
Fuse type: Blade fuse
Location: Below the seat.
9
WARNING
!!
•
Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
•
Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
•
Pullout the battery (9) from the battery box.
