CLUTCH LEVER FREE PLAY
Adjustment
Clutch adjustment may be required if the
vehicle stalls when shifting into gear or tends
to creep or if the clutch slips, causing
acceleration to lag behind engine speed.
Normal clutch lever free play (1) is 10-20
mm at the lever (2).
•
After tightening the lock nut, check the
clearance again.
•
Installation is in the reverse order of
removal.
Before inserting the feeler gauge, smear a bit
of engine oil on the feeler gauge to avoid
damage to the feeler gauge.
NOTE

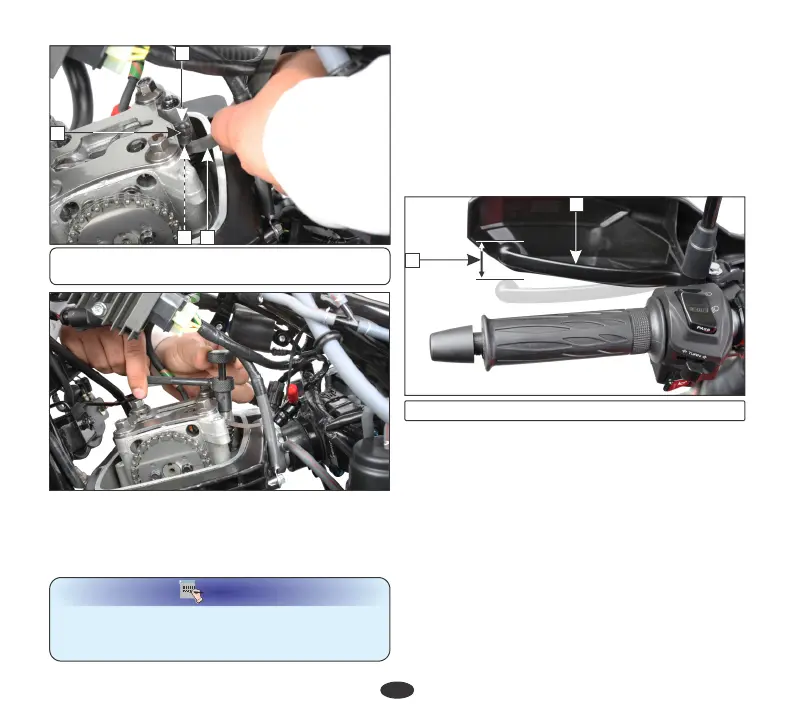

(1) Free play: 10-20 mm (2) Clutch lever
1
(5) Feeler gauge (6) Adjusting screw
(7) Valve stem (8) Lock nut
7
5
6
8
• To adjust the free play, loosen the lock nut
(3). Turn the adjusting nut (4) to obtain the
specified free play. Tighten the lock nut and
check the adjustment.
• Start the engine, press the clutch lever and
shift into gear. Make sure the engine does
not stall, and the vehicle does not creep.
Gradually release the clutch lever and open
the throttle. The vehicle should start
smoothly and accelerate.
