HERO XPULSE 200 PROGRAMMED FI - Centrifugal Filter Cleaning

51
•

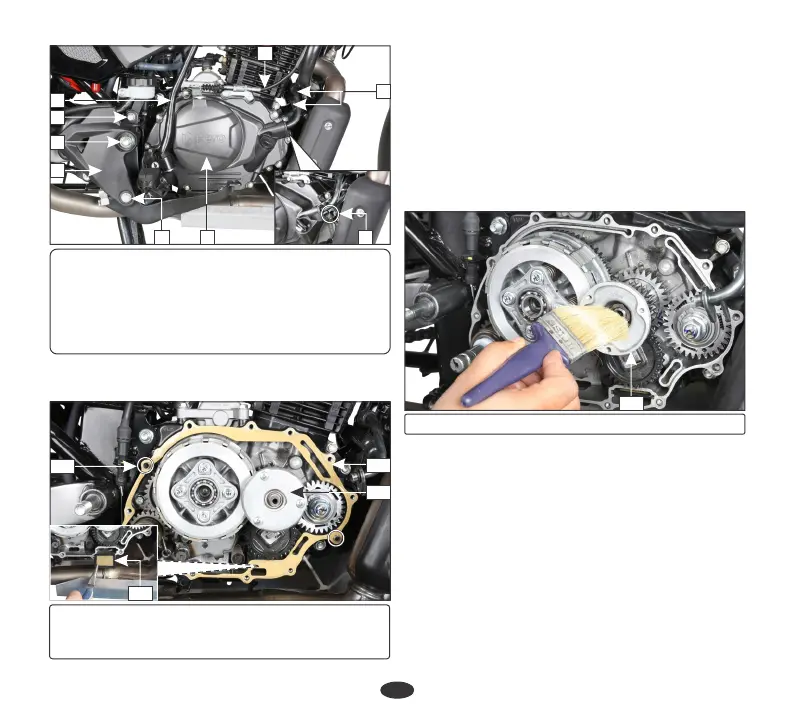

Remove the dowel pins (10) and gasket
(11).
5
4
(1) Kick start pedal (2) Clutch cable
(3) Right crankcase cover (4) Swingarm nut
(5) Rider footrest bracket bolt
(6) Rider footrest bracket cover bolt
(7) Footrest bracket assembly
(8) Oil cooler hoses (9) Oil cooler hoses bolt
3
2
7
6
1
8
9
(10) Dowel pins (11) Gasket
(12) Oil filter screen
(13) Centrifugal filter cover
12
13
11
• Reinstall the filter screen with the tapered
end facing in.
•
Remove the oil filter screen (12) and wash
it in clean non flammable or high flash point
solvent (kerosene).
• Remove centrifugal filter cover with gasket
(13) & clean the centrifugal filter (14)
with non flammable or high flash point
solvent (kerosene).
(14) Centrifugal filter
14
• Reinstall the centrifugal filter cover with new
gasket.
• Install the new dowel pins & gasket, right
crankcase cover and connect the clutch
cable.
• Install the oil cooler hoses by tightening its
bolt.
• Install the footrest bracket assembly.
Swingarm nut torque: 5.4 kgf-m
• Install and tighten the rider footrest bracket
cover bolt, rider footrest bracket bolt and
swingarm nut.
