(b) Rear wheel
Refer safety precautions on (page 44).
•
Support the vehicle securely on the main
stand and raise the rear wheel off the
ground.
Removal

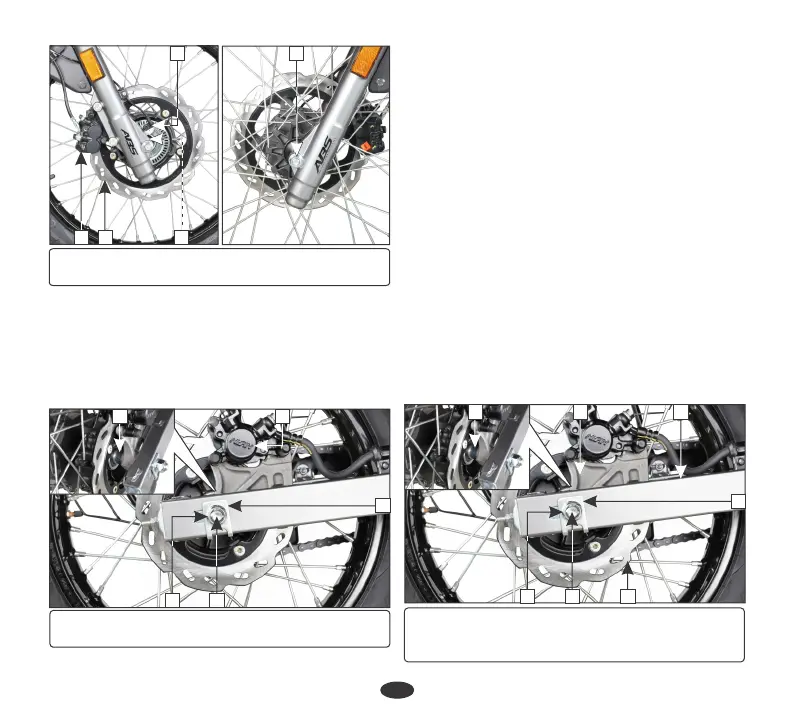

(1) Side collar (2) Disc (3) Caliper
(4) Front axle nut (5) Wheel speed sensor
(1) Rear axle nut (2) Indicator plate (3) Axle
(4) Side collar (5) Caliper assembly
4
2
1 3
•
Align the rear caliper holder (3) with the
swingarm (4).
•
Remove the axle (3) and the right side
collar (4).
•
Remove the rear axle nut (1) and indicator
plate (2).
•
Insert the axle (5) from the left side through
the swingarm, wheel hub, collar and rear
caliper holder.
•
Install the side collar (1) to the right side of
the wheel hub.
•
Position the rear wheel between the
swingarm.
•
Move the caliper assembly (5) upwards.
•
Remove the wheel.
Installation
•
Insert the disc (2) between the pads in the
caliper assembly. When installing the wheel,
carefully fit the brake disc between the brake
pads to avoid damage to the pads.
(1) Side collar (2) Disc (3) Caliper holder
(4) Swingarm (5) Rear axle
(6) Indicator plate (7) Rear axle nut
4
3 2 1
5
5
1
6
7 5 2
3 4
To Next Page
