V-Switch quad II - Installation and Operation Manual
ON SCREEN DISPLAY
28

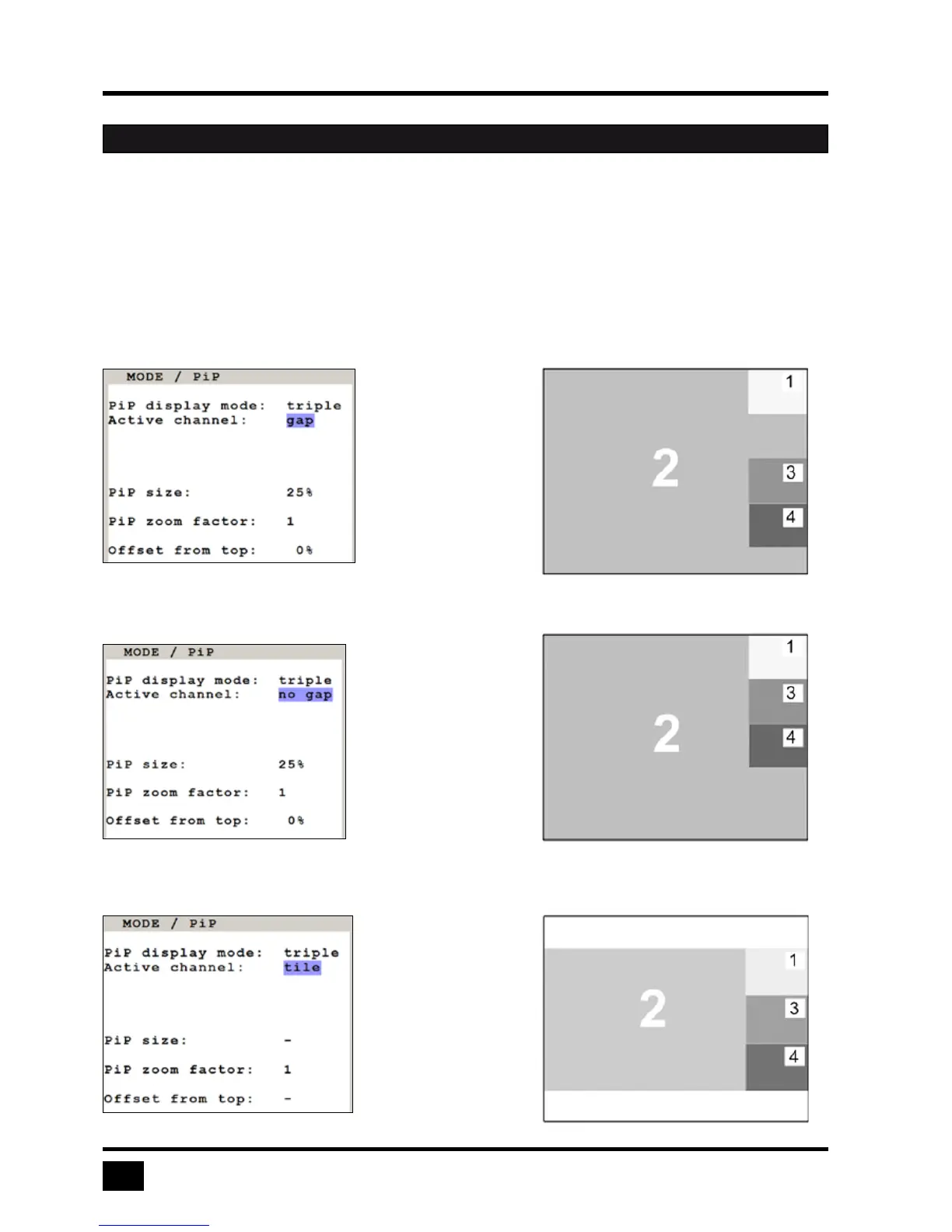

PIP Display Modes
V-Switch quad II offers the following PiP modes:
PIP display mode triple: All other video sources are displayed (three PiP images)
Triple gap:
PiP images are displayed
with a gap in place of the
active channel.
Triple no gap:
PiP images are displayed
without a gap.
Triple tile:
The size of the main image
and the PiP images is
optimized so that the main
image and the PiP images
are shown as large as
possible without
overlapping.
OSD - MODE - PIP
