V-Switch quad II - Installation and Operation Manual
ON SCREEN DISPLAY
29

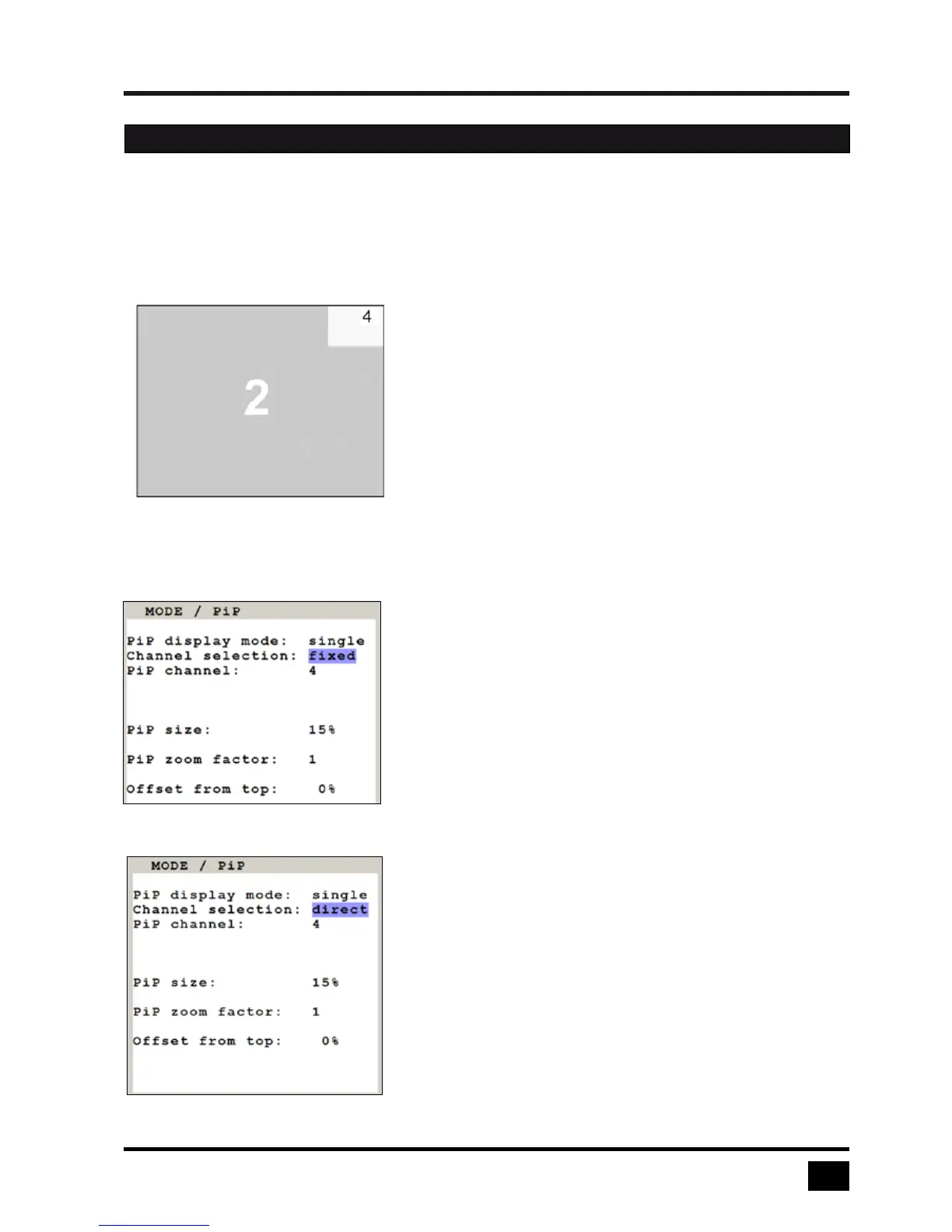

PIP Display Modes (continued)
PIP display mode single: One PiP image is displayed.
You can choose between different display modes:
Single fixed:
One channel is selected to be displayed as permanent PiP image.
Only the active channel (full image) can be switched.
Press front panel buttons 1, 2, 3, or 4 to switch the full image.
Single direct:
One channel is selected to be displayed as permanent full image
(active channel).
Only the PiP can be switched.
Press front panel buttons 1, 2, 3, or 4 to switch the full image.
OSD - MODE - PIP
