In addition to Power and Ground, some LED lights have a third wire that is
used to control the light’s brightness. This is done using a low-power pulse
width modulation (PWM) control signal.

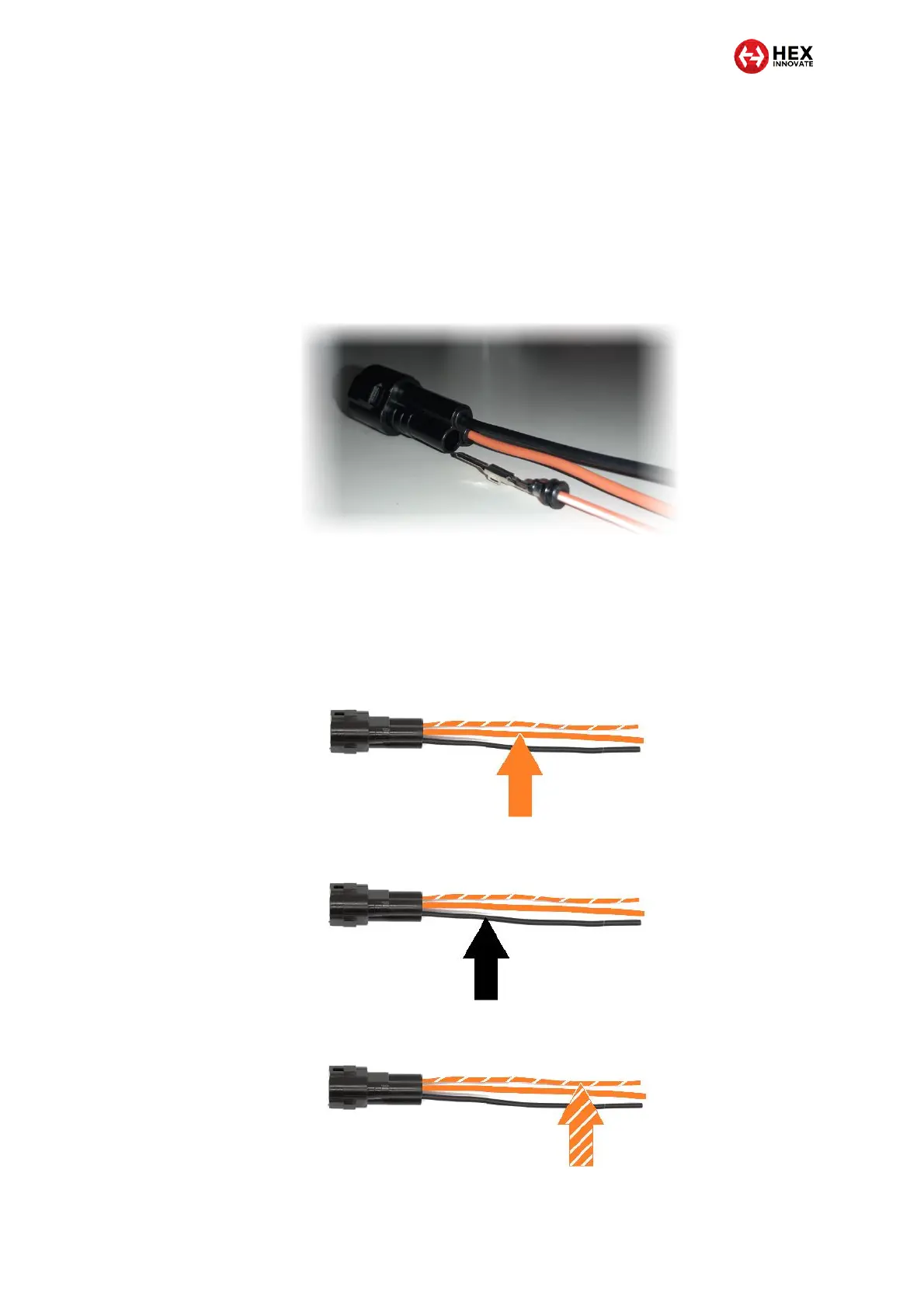

Join the wiring of a three-wire LED light to an ezCAN stub connector by
doing the steps that follow:
1. Note the position of the empty terminal cavity on the stub
connector, and the orientation of the male terminal of the PWM
control wire that will be inserted into the stub connector (below).
2. Push the male terminal of a PWM control wire firmly into the rear
of the stub connector’s empty terminal cavity, making sure the
terminal is oriented as seen above.
The terminal should ‘Click’ into the stub connector.
3. Connect the auxiliary light's 12V+ wire to the solid-coloured
orange wire on the stub connector (below).
4. Connect the auxiliary light's Ground wire to the black wire on the
stub connector (below).
5. Connect the auxiliary light's PWM/data brightness-control wire to
the orange-and-white wire on the ezCAN stub connector (below).
