 Marker lights.
 Heated gear.
 Action cameras.
 Switched 12V outlets supplying power to mobile phones, satellite-
navigation devices, and so on.
You are not limited to a specific role per power circuit: any 12V accessory
of any type can be assigned to any power circuit.
The possibilities are so broad that we recommend you devote some
thought to function and configuration. One common installation scenario

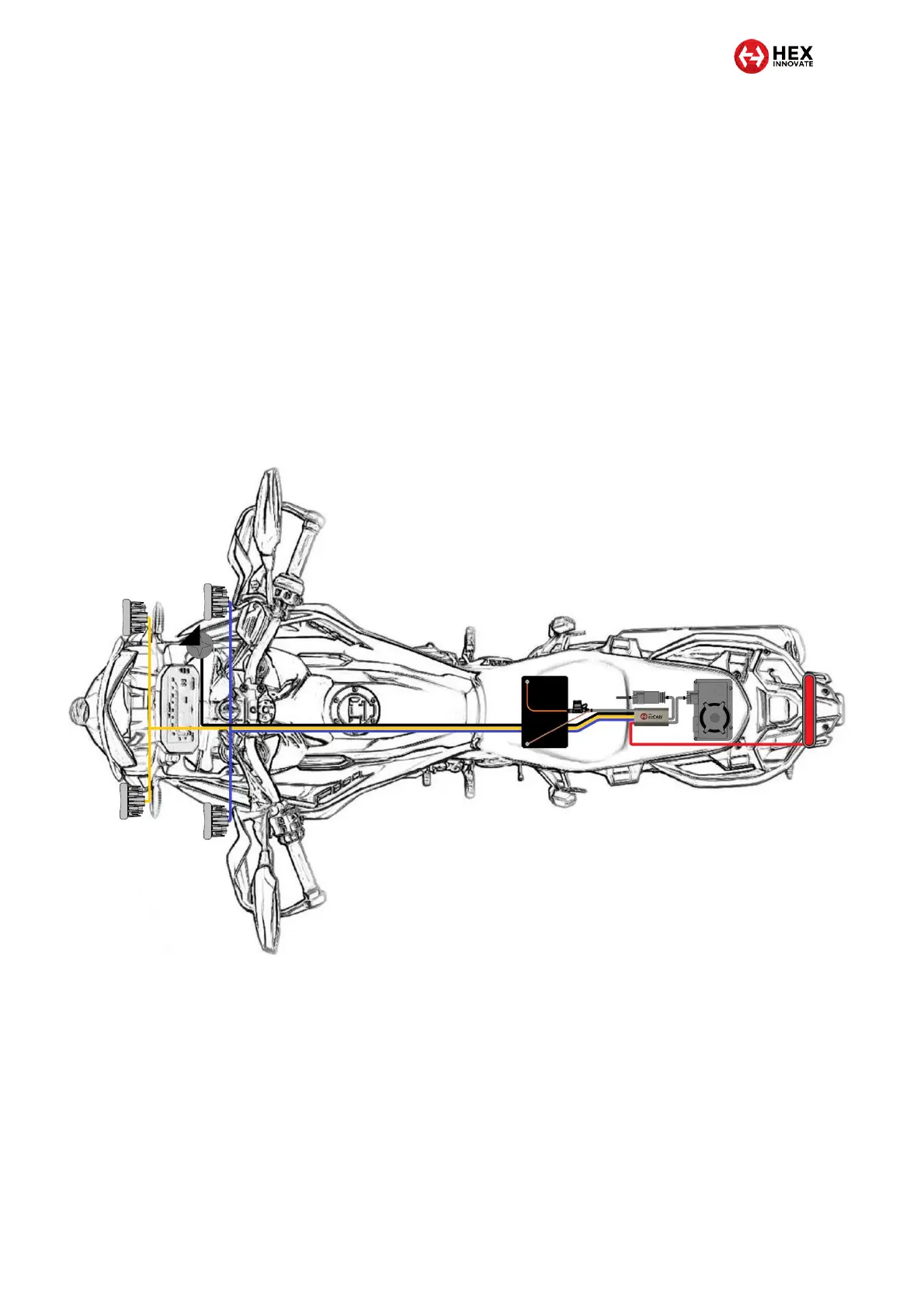

(below) includes a circuit powering two front spotlights (blue circuit),
another circuit powering two more front spotlights (yellow circuit), a circuit
powering an auxiliary rear light (red circuit), and a circuit powering a high-
power accessory horn (white circuit, shown in black for clarity).
But you are not confined to this layout. Many ezCAN customers have
created truly imaginative scenarios, all of which have enhanced their
personal riding experience.
2.1 Hex ezBUS
The white power circuit of every Generation II Hex ezCAN has built-in
ezBUS functionality. This means that as well as providing the same power
and control functions as the red, blue and yellow circuits, it also
accommodates data communication. This provides two great benefits:
