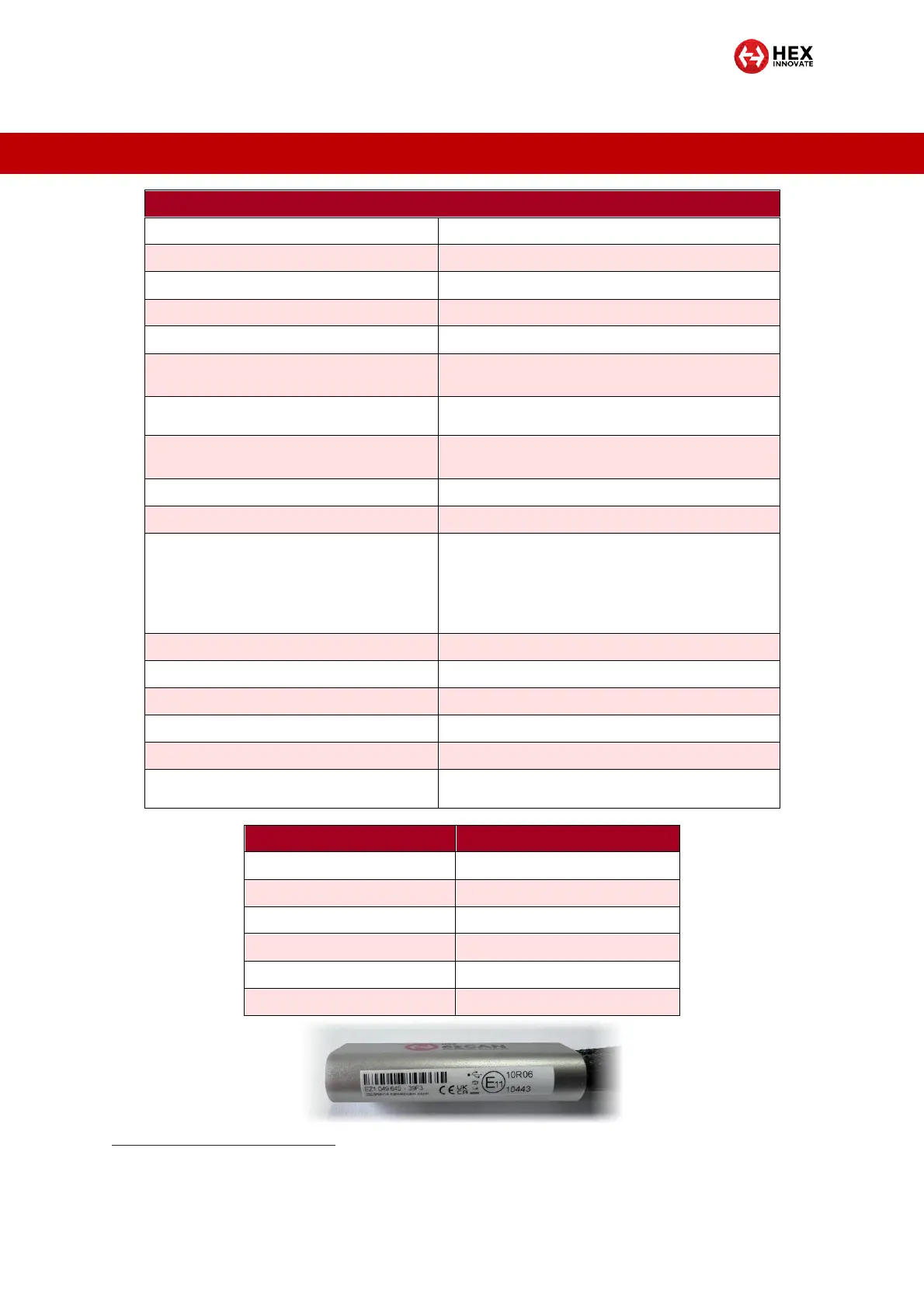

7 SPECIFICATIONS
Generation II hardware specifications
Physical size
76mm x 30mm x 16mm
Voltage supply
6V to 18V
System fuse rating
30A, automotive mini blade fuse
Maximum continuous current
30A (25A recommended)
Current consumption (operating)
25mA (typical)
Current consumption (sleep)
750µA (typical)
1mA (max)
Number of output circuits
Four, each with switched 12V power, Ground and
PWM/data brightness control wire
Output circuit current
10A per circuit (continuous)
25A (max) for 25 seconds
Output circuit fusing
Electronic fuses, configurable from 1A to 25A
Output circuit 3rd wire (PWM/data control)
40mA (short circuit current)
Measurement ranges:
Output current
CAN-bus voltage
Horn input
Switch input
0 to 72A
0 to 22V
0 to 22V
0 to 3.3V
Internal thermal protection
90ºC maximum internal temperature
Transient protection
As per UN ECE Regulation 10 (Revision 5)
CAN connectivity
1x CAN 2.0B
USB connectivity
USB V2.0 full speed, micro B-type connector
LIN connectivity
Configurable LIN master (White power circuit)
Water and dust protection
Sealed unit. Waterproof USB connector with dust cover
and sealed connectors
Product
Type approval number
Generation I 2-wire devices
No approval
Generation I 3-wire devices
No approval
Generation I 3-wire devices
2
E11*10R05/01*10262*00
Generation II devices
2
E11*10R05/00*10443*00
Generation II devices
2
E11*10R05/00*10443*01
Generation II devices
2
E11*10R06*10443
2
The E type approval number is shown on the bar-coded label affixed to the ezCAN’s main body (above).
