5.1.4 Honda
5.1.4.1 ezCAN II Sahara
Applicable models:
 CRF1100 Africa Twin

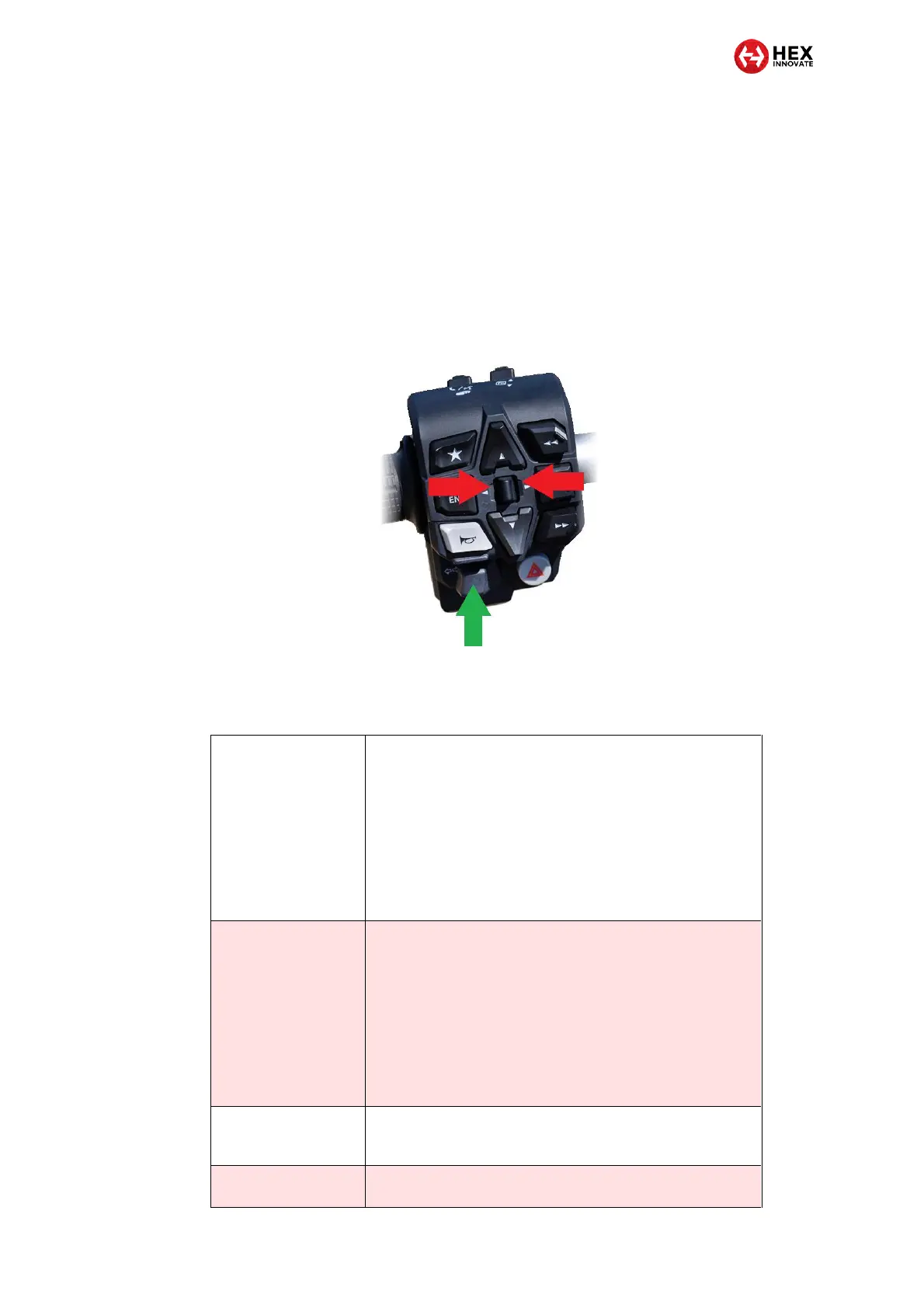

The ezCAN is controlled using the Select Left/Right switch (red arrows,
below) and turn-signal cancel button (green arrow, below) on the left-side
handlebar controls.
The Select Left/Right switch and Turn-signal cancel button referred to in
this section are located on the Africa Twin’s left-side handlebar controls.
See the image above for details.
Adjusting Aux 1 lights
only
1. Press and hold the Select Left/Right switch to the LEFT
until the Aux 1 lights flash twice.
 The Aux 1 lights are now in brightness-adjustment
mode.
2. Briefly press and release the Select Left/Right switch to
the RIGHT to increase light brightness by 10% per click
(to a maximum of 100%), or to the LEFT to decrease
brightness by 10% per click (to a minimum of 0%).
3. Exit brightness-adjustment mode by not operating the
Select Left/Right switch for more than 5 seconds.
Adjusting Aux 2 lights
only
1. Press and hold the Select Left/Right switch to the
RIGHT until the Aux 2 lights flash twice.
 The Aux 2 lights are now in brightness-adjustment
mode.
2. Briefly press and release the Select Left/Right switch to
the RIGHT to increase light brightness by 10% per click
(to a maximum of 100%), or to the LEFT to decrease
brightness by 10% per click (to a minimum of 0%).
3. Exit brightness-adjustment mode by not operating the
Select Left/Right switch for more than 5 seconds.
Toggling Aux 1 lights
On and Off
Press and hold the turn-signal cancel button for more than 3
seconds. The state of the lights persists even if the ignition is
cycled.
Toggling Aux 2 lights
On and Off
Click the turn-signal cancel button three times. The state of
the lights persists even if the ignition is cycled.
