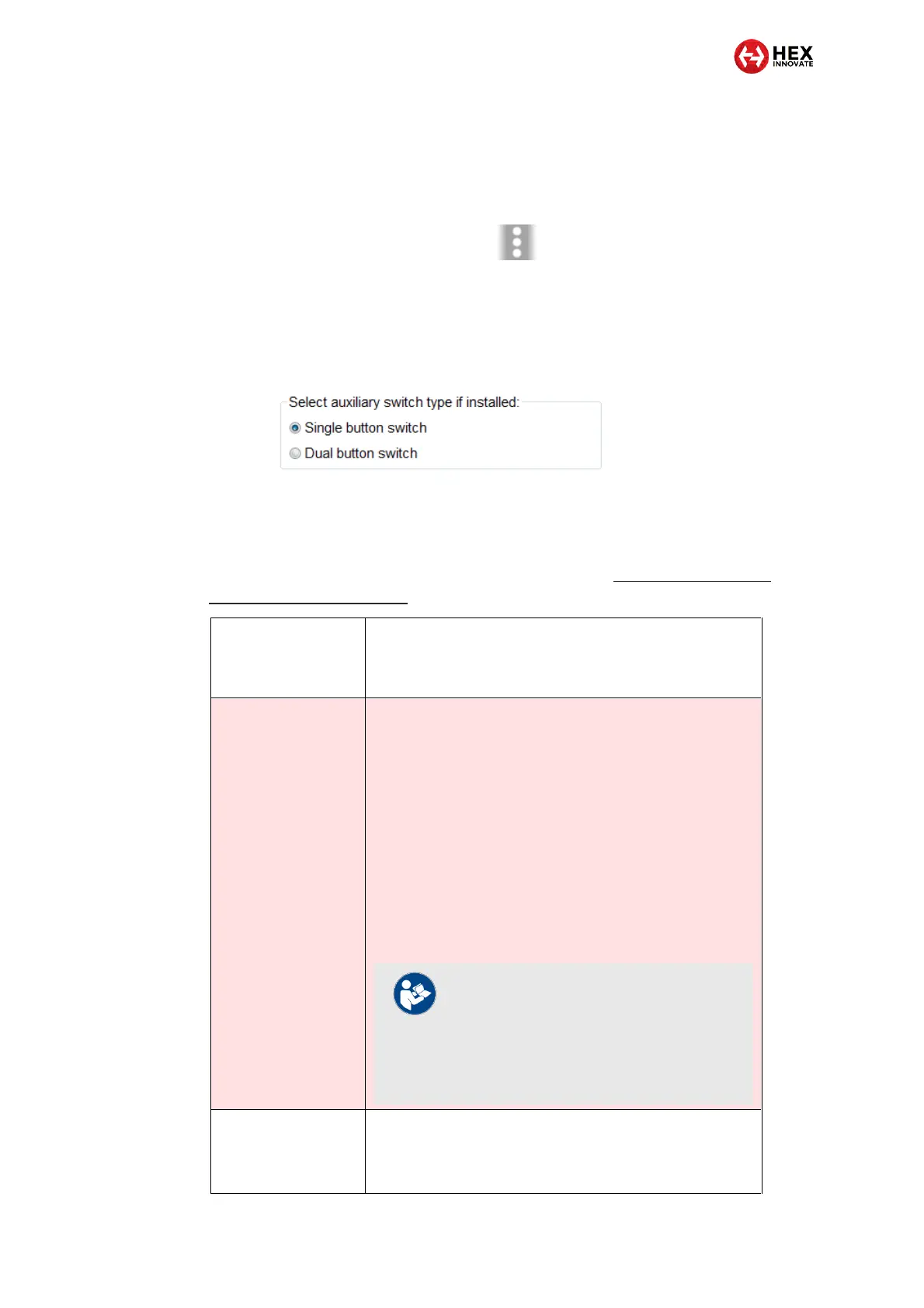

To configure the ezCAN to accept control input from a single-button
switch, do the steps that follow:
1. Click the drop-down menu button in the upper right corner of the
Auxiliary Lights One or Auxiliary Lights Two sections (below).
2. Click the Extra Settings option.
 The auxiliary lights Extra Settings menu will be shown.
3. Configure the ezCAN to accept control input from the single-button
switch by selecting the Single button switch option (below).
4. Click OK.
The single-button option controls the on/off function and brightness of the
Aux 1 circuit only. To choose whether the Aux 2 lights switch on or off
based on how the Aux 1 lights are commanded, see Switching Aux 1 and
Aux 2 lights independently.
Switching all Aux 1
(and optionally, also
all Aux 2) lights on or
off
Briefly press and release the single-button switch.
 The Aux 1 (and optionally, also Aux 2) lights will be
switched on or off according to the settings in the
auxiliary lights Extra Settings menu.
Adjusting the Aux 1
lights
1. Press and hold the single-button switch until the Aux 1
lights flash twice.
 The Aux 1 lights are now in brightness-adjustment
mode.
2. Release the single-button switch.
3. Briefly press and release the single-button switch to
adjust light brightness.
 Each press will brighten the Aux 1 lights by 10%
to a maximum of 100%, then roll brightness
through to 0% (OFF).
 You can repeat this cycle as many times as you
need.
4. Exit brightness-adjustment mode by not operating the
single-button switch for more than 5 seconds.
Strobing Aux lights on
‘Flash-to-pass’
Click the motorcycle’s ‘Flash-to-pass’ button three times.
Note that to be active, this function must be enabled using
the ezCAN configuration interface.
NOTE
The brightness of Aux 2 lights cannot be
adjusted using a single-button switch.
If you want to adjust the brightness of Aux 1
and Aux 2 lights, we recommend using a
Hex UP-DOWN switch instead.
