When connecting the power wiring of an accessory to an ezCAN stub
connector, do the steps that follow:
1. Install the ezCAN and all accessories on the motorcycle.
2. Measure the length of each planned power circuit wiring run.
3. If needed, extend the stub connectors by adding more wiring
between each terminal of the accessory. Alternatively, consider

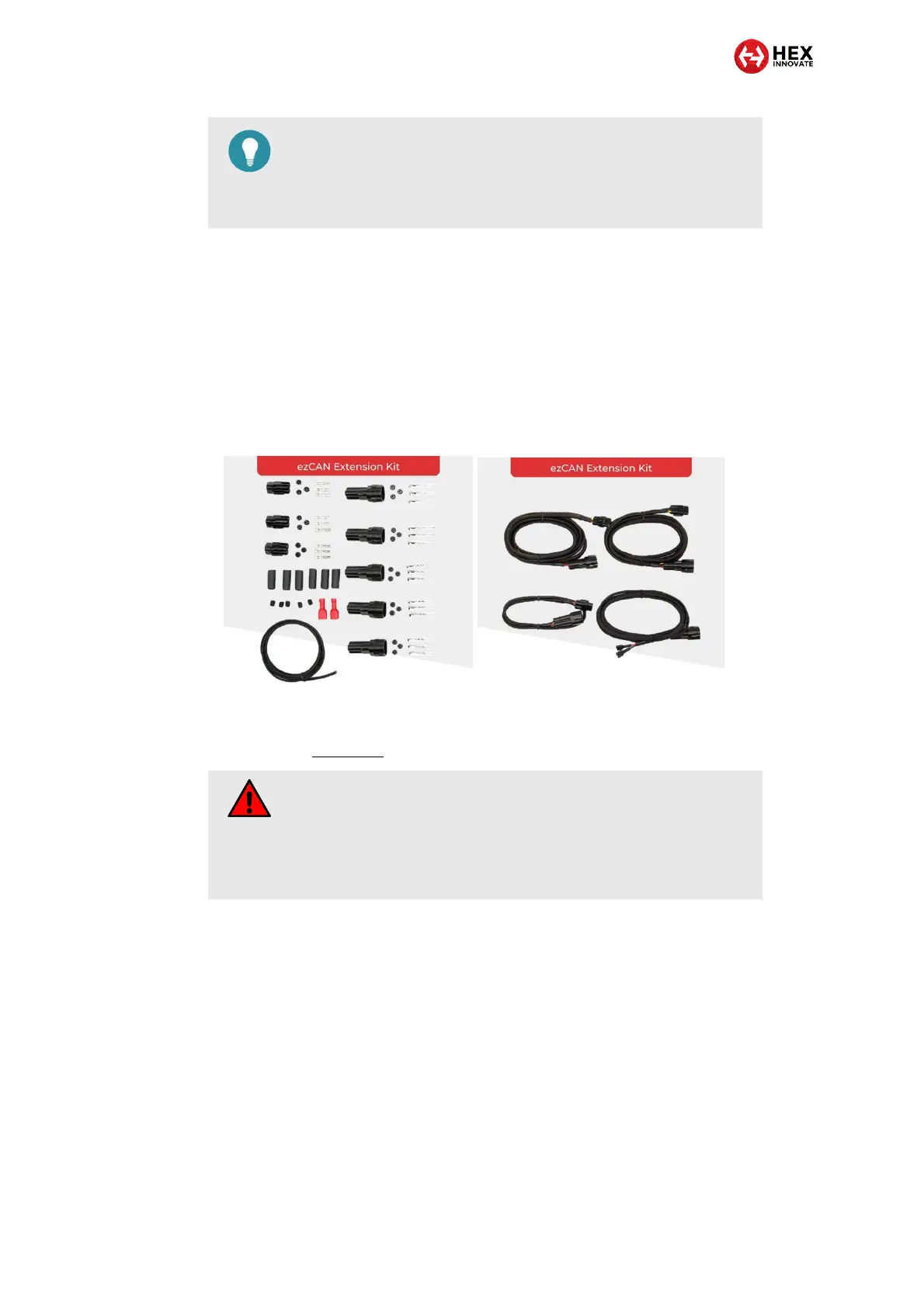

using the ezCAN extension kit (unassembled view below left,
assembled view below right).
To purchase an ezCAN extension kit from the Hex Innovate online
store, click here.
TIP
Some types of heat-shrink tubing have an interior coating of
adhesive. This type of tubing is preferred, as it improves
water resistance.
WARNING
If an accessory connects to a power outlet (for example, a
Hella plug), make sure the accessory’s power cord cannot
interfere with control of the motorcycle, and cannot entangle
you when you get onto and off of the motorcycle.
