Hex ezCAN for CAN-bus-equipped Motorcycles
_________________________________________________________________________________________________
_________________________________________________________________________________________________
© Hex Innovate (UK) Ltd. Page 19 of 60 ezCAN 2408.x

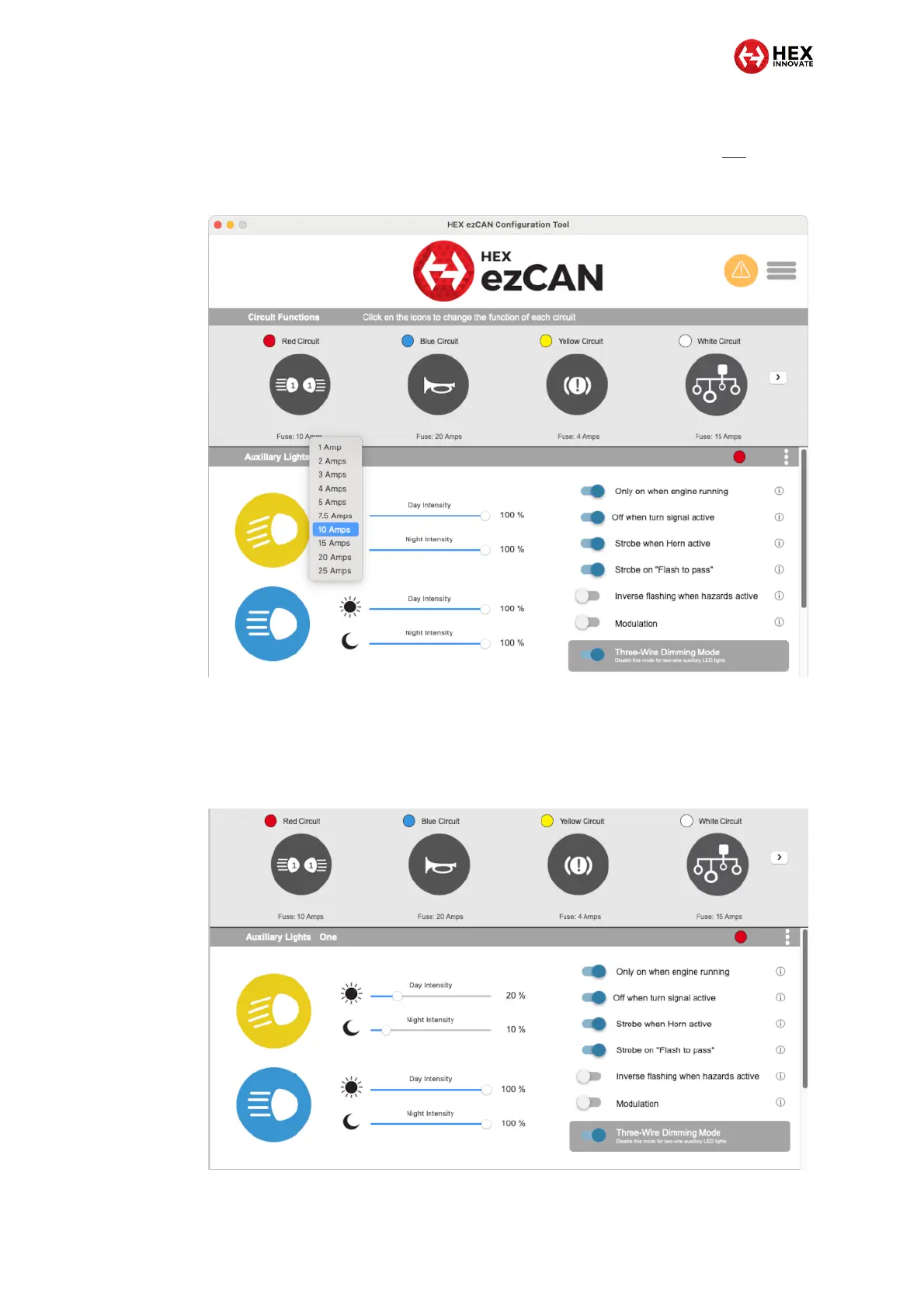

Next, select the correct fuse setting for each circuit you will be using. For
instructions on how to select the correct fuse settings, see section 3.1. In
the example below, a 10 Amp fuse rating has been chosen for the red
power circuit, to power a linked pair of auxiliary lights.
Lastly, customise and fine-tune the behaviour of the circuit powering the
accessory by using the appropriate configuration panel. These panels
contain controls that correspond to the chosen accessory type. The
configuration panel for Auxiliary lights One is shown below as a result of
the red output circuit’s accessory-type setting.
In the sample configuration shown above:
