IRP40.02 Description
27
1.1.3 Declaration of Conformity
The EC Declaration of Conformity can be found at the end of these operating instructions.
If required, a copy of the signed original declaration of conformity may be requested from the address given on the
back cover.
1.1.4 Validity
These operating instructions are valid for the hardware available at the creation date of these operating instructions.
Technical changes by the manufacturer are reserved.
The latest version of these operating instructions can be downloaded at www.mh-inprocess.com
under Downloads.
1.2 Purpose
The infrared touch probe IRP40.02 is used for workpiece measurement, and automatic determination and
compensation of deviating angular positions of workpieces. Moreover, it is used for setting zero points inside the
machine tool.
The infrared touch probe IRP40.02 is capable of measuring workpiece geometries like edges, bores, bosses, slots,
webs, angles, corners and circular arches. Furthermore, it allows measuring of complex geometries like
3-dimensional surfaces and measuring with swivelled 4th and 5
th
axis.
The measurement signals from the touch probe are transmitted to the receiver via infrared transmission.
1.3 System Components

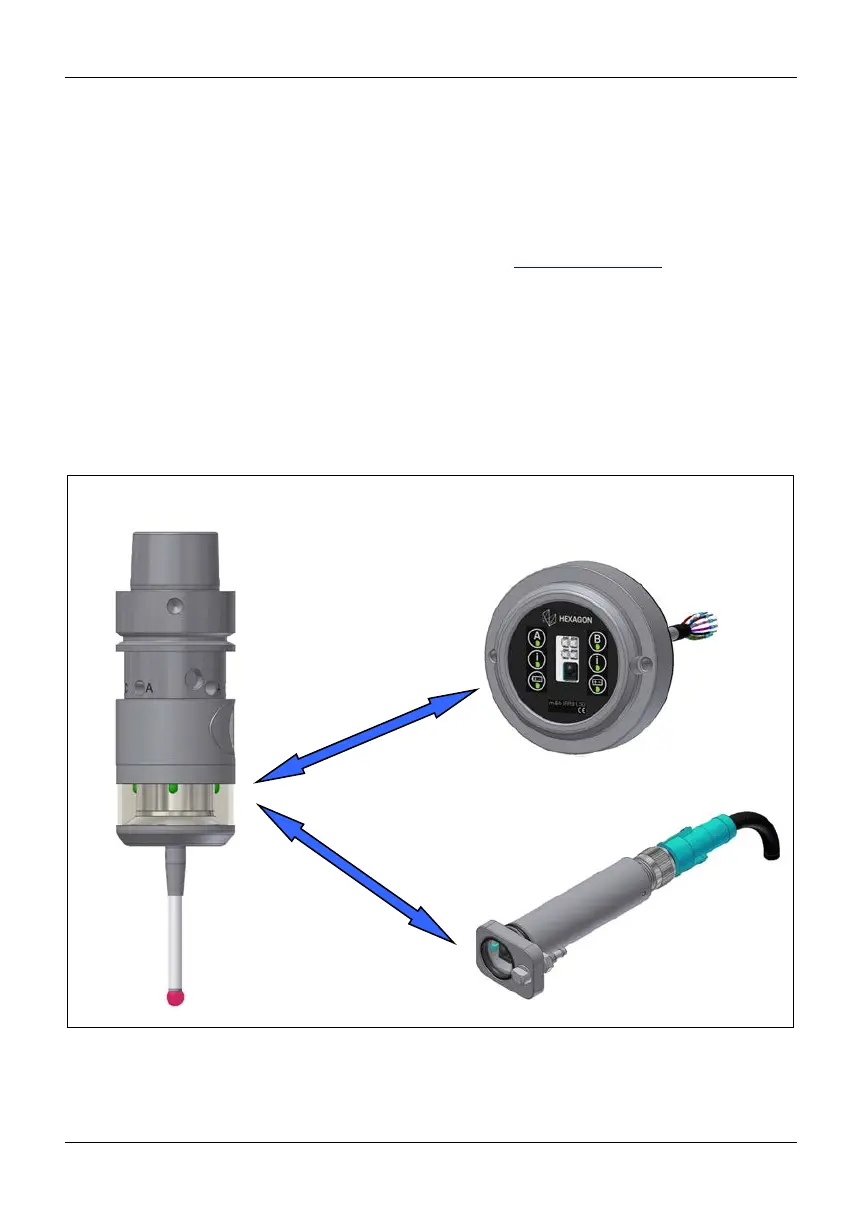

Fig. 1 System components
m&h Infrared Touch Probe
IRP40.02
IRR91.50
IRR91.42
