Hexagon m&h 40.02-IRP User Manual

Description IRP40.02
28
1.4 Technical Data
Technical Data 40.02-IRP (Standard Version)
Sensing Directions
±X; ±Y; -Z
Maximum Stylus Overtravel
XY = ±12,5°; Z = -5 mm
Trigger Force with 50 mm Stylus
XY = 0,8 N; Z = 5,7 N
Recommended Probing Feedrate
Max. 2000 mm/min
Power Supply
2x Battery (3,6 V / ½ AA), Standby 12 months
Maximum Battery lifetime
approx. 800 hrs
Material
Stainless steel
Weight without Shank
approx. 235 g
Temperature Range
Operation: 5°C - 55°C, Storage: 5°C - 70°C
Unidirectional Repeatability
max. 0.5 µm (2 Sigma) with 50 mm stylus
and 254 mm/min probing feedrate
Sealing
IP68: EN60529 (15 m) tested
Maximum Probing Frequency
50 Hz = 50 points/s
Shock tested
in ±X; ±Y; -Z, 50G for 7ms (5000 times)
Resonant Frequency Test
Passed
Deviating Technical Data 40.02-IRP-8N (Version: High Force)
Trigger Force with 50 mm Stylus
XY = 1 N; Z = 8 N
Unidirectional Repeatability max. 1 µm (2 Sigma) with 50 mm stylus
and 254 mm/min probing feedrate

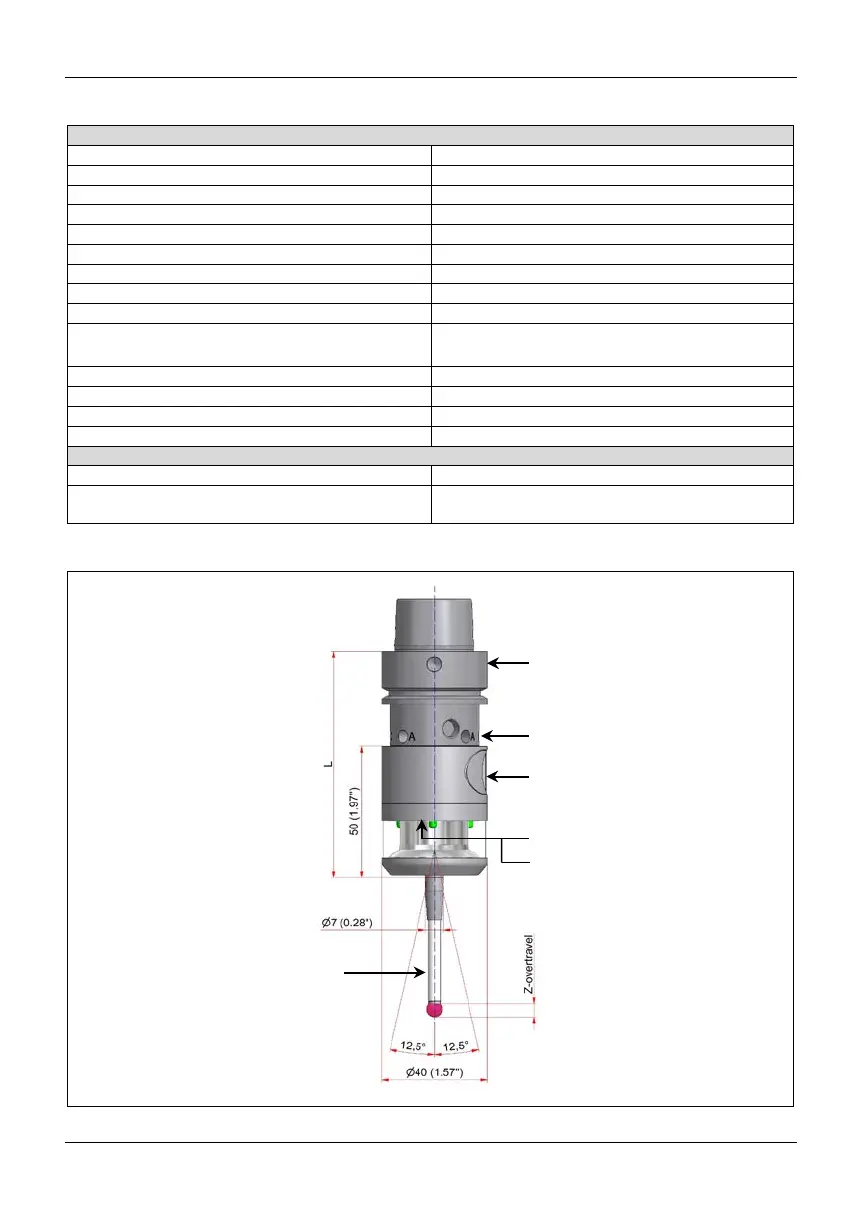

1.5 Dimensions
Fig. 2 Dimensions
Aligning stylus to spindle centre
High Power infrared diodes
Infrared receiver unit
Customer specified shank
Stylus M4
Battery compartment
