Description IRP40.02
30
1.6.2 Reception Angles

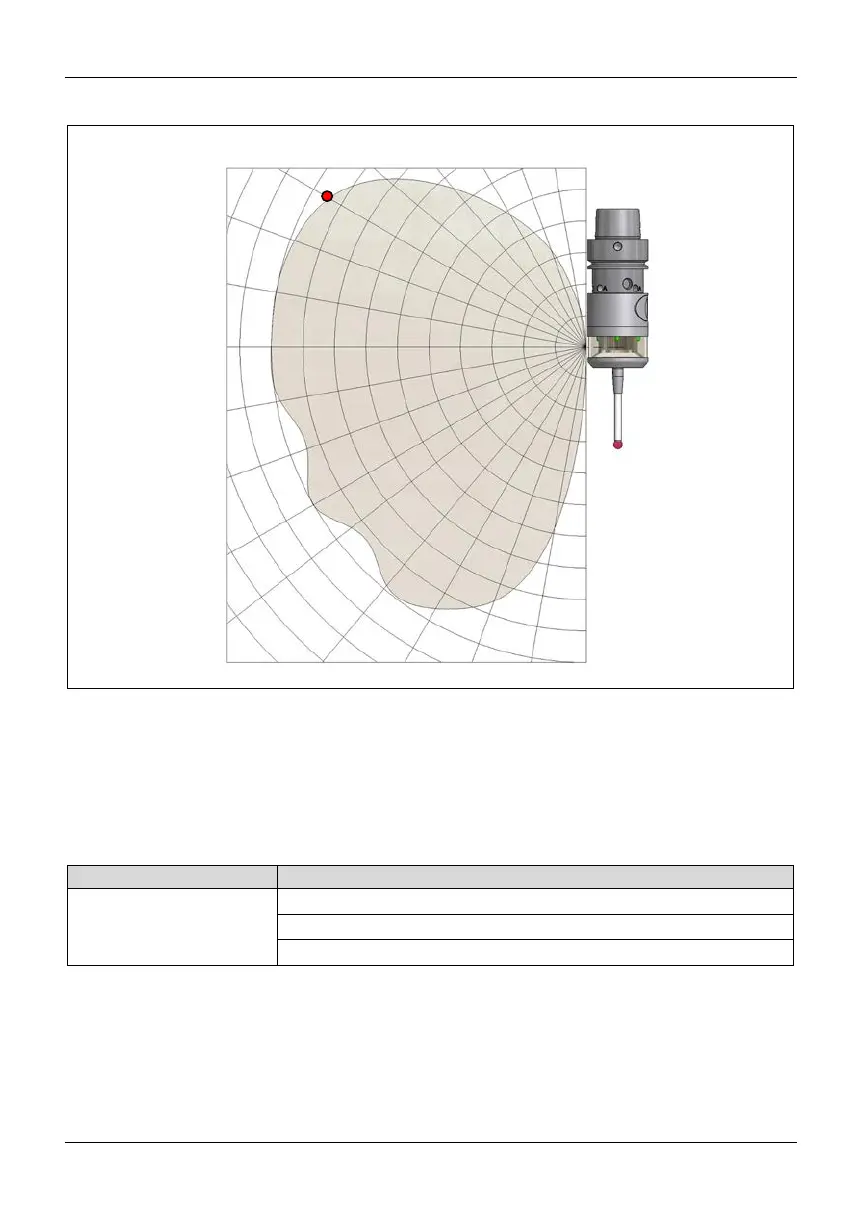

Fig. 4 Reception angles of IRP40.02
Example (see red mark):
Transmission range of receiver = 5 m, angle to receiver = 30°; reception power of probe at 30°= approx. 95%
→ reception range of probe = approx. 4,75 m
1.7 Delivery Contents, Accessories and Spares
1.7.1 Delivery Contents
Order No.
Description
40.02-IRP (*40.02-IRP-8N) m&h Infrared Touch Probe IRP40.02 (*High Force version)
4x Battery (3,6 V / ½AA) (4316)
Tool box (40.02-TB)
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
10°
20°
30°
40°
50°
60°
70°
80°
0°
