Hexagon m&h 40.02-IRP User Manual

IRP40.02 Operation
39
2 Operation

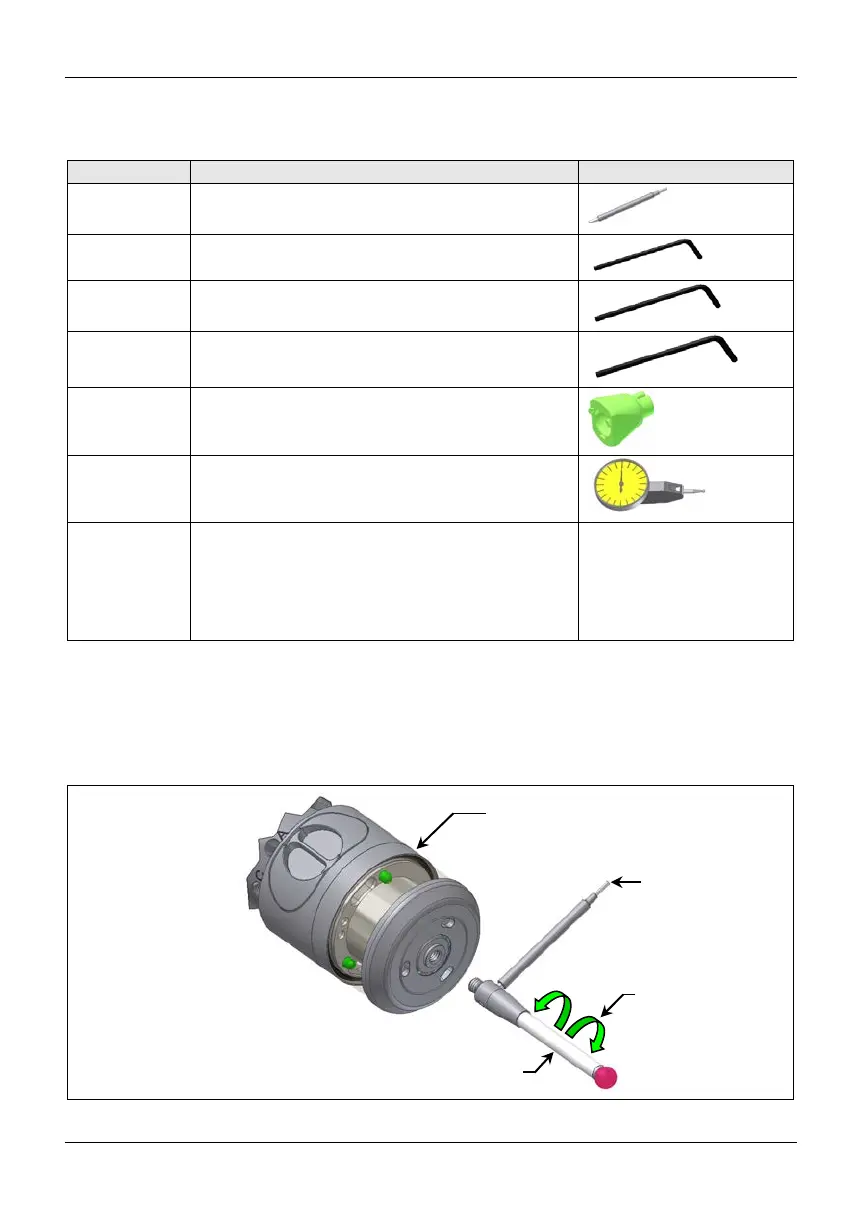

2.1 Tools, Measurement- and Test-Equipment
Order No.
Description
Illustration
0885 Mounting pin
1097 Hexagon key AF2 mm
1346 Hexagon key AF2.5 mm
3489 Hexagon key AF4 mm
5840 Mounting tool for service cover and battery cover
3079 Dial gauge
40.02-TB
Tool Box
Not illustrated
1x Mounting pin (0885)
2x Hexagon key AF2 mm (1097)
1x Hexagon key AF2.5 mm (1346)
1x Mounting tool for service cover and battery cover (5840)
2.2 Changing Stylus
1. Unscrew the stylus from the touch probe using the mounting pin.
2. Carefully screw the new stylus into the touch probe (Fig. 6).
3. Align the stylus to spindle center (refer to chapter 2.5).
4. Calibrate the probe.
Fig. 6 Stylus change
Mounting pin
(0885)
Stylus
m&h Infrared touch probe
IRP40.02
M=2 Nm (1.47 lbf.ft)
