Hexagon m&h 40.02-IRP User Manual

IRP40.02 Operation
45
2.8 Maintenance and Cleaning of Infrared Touch Probe IRP40.02
NOTICE
Risk of damage to the equipment!
• Clean and dry the probe well before opening!
• Do NOT clean with compressed air or high pressure water!
• Do NOT use any sharp tools (these could damage the inner seal)!
1. Unscrew the stylus.
INFORMATION
Unter dem Service-Deckel kann sich Schmutz ansammeln.
2. Remove the service cover using the mounting tool (5840).
3. Clean probe and parts under running water.
4. Reassemble all parts.
5. Align the stylus to spindle centre.
6. Calibrate the probe!

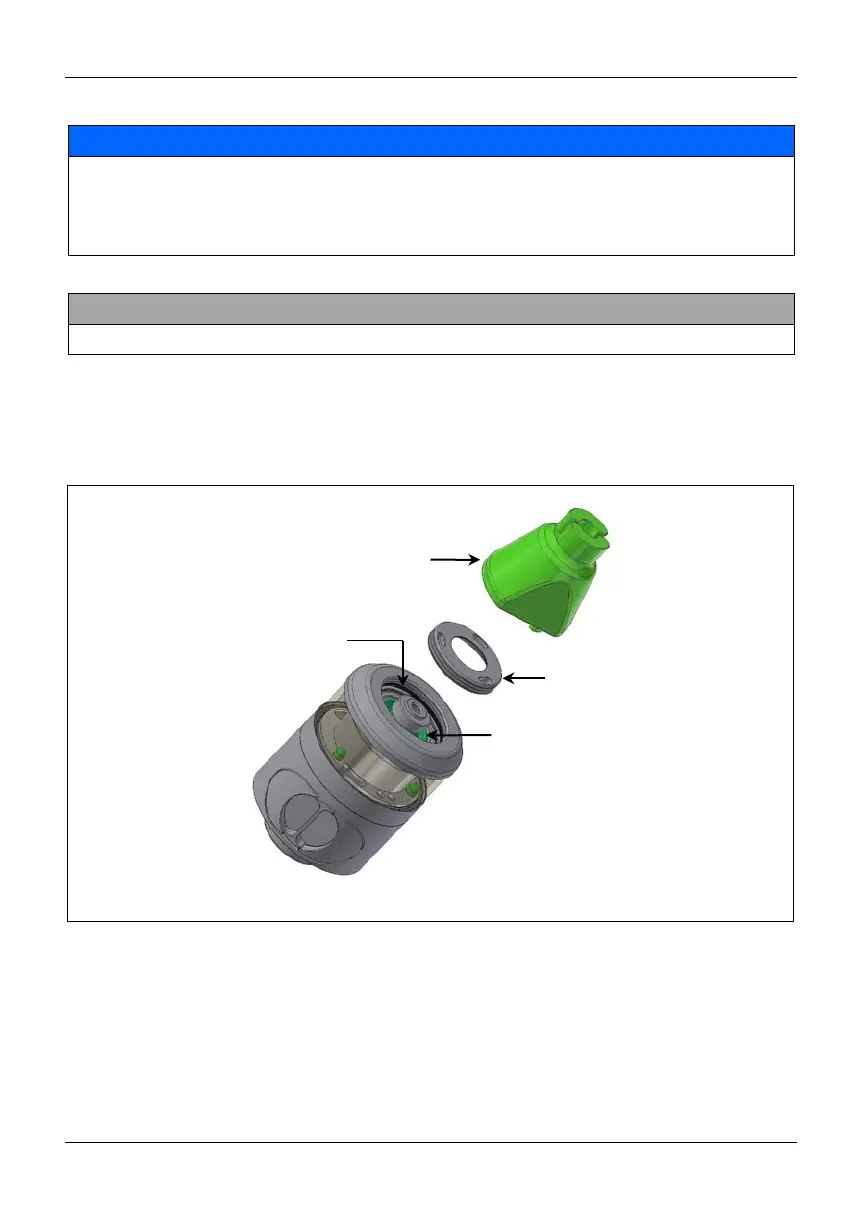

Fig. 13 Maintenance and cleaning of infrared touch probe IRP40.02
Service-cover (5773)
Inner seal
Mounting tool (5840)
O-Ring 23x1 Viton (6161)
