2.3 Mounting/Dismounting the Shank
2.3.1 Mounting shanks Ø20
1. Dismounting the shank:
1.1. Remove all "A" and "C" screws (refer to Fig. 7)
1.2. Remove shank.
2. Mounting the shank:
2.1. Carefully slide the shank onto the probe body. Align the "C" threads with the conical bores.
2.2. Insert both clamping screws "C" and tighten lightly.
2.3. Insert adjustment screws "A" and tighten lightly.
3. Align the stylus to spindle center (refer to chapter 2.5).
4. Calibrate the probe.

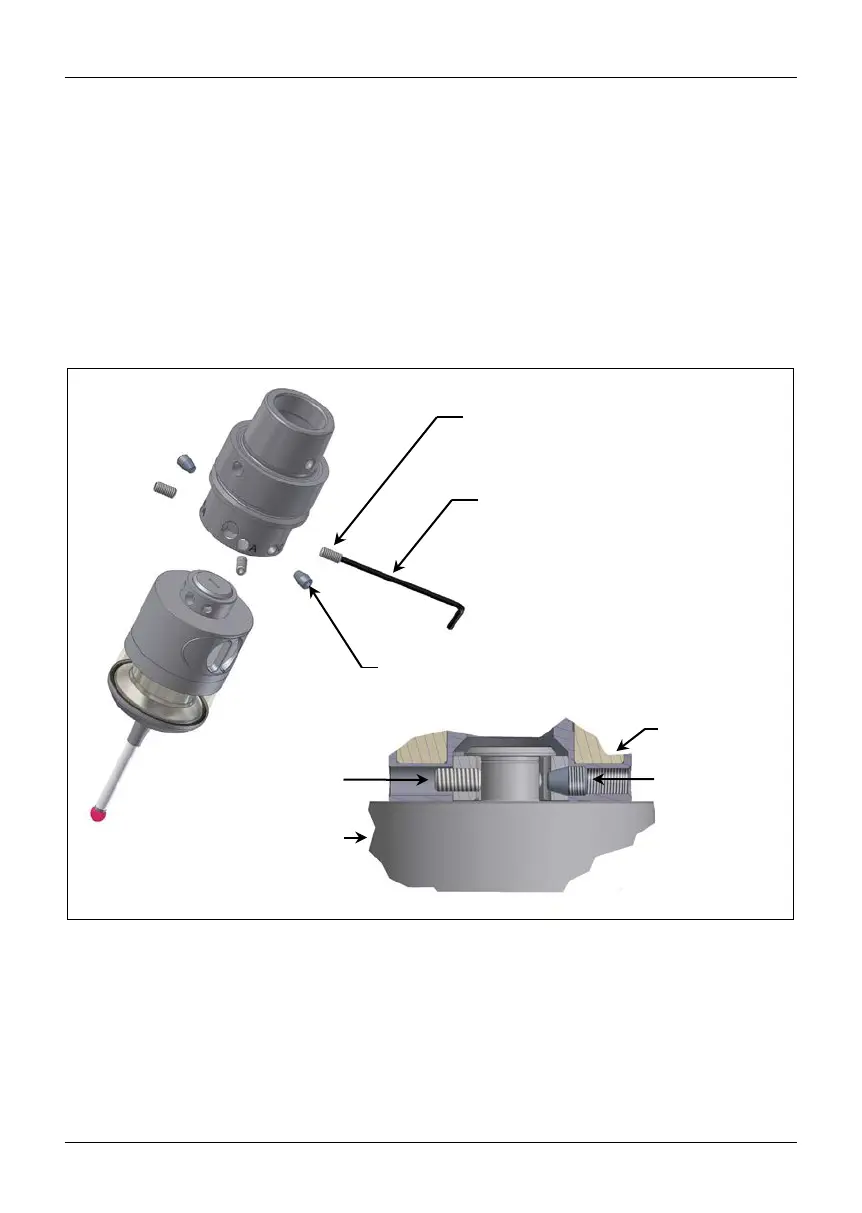

Fig. 7 Mounting/dismounting the shank
C = Clamping screw AF2,5 mm (2x) (1351)
Hexagon key
AF
2 mm (1097)
AF
2,5 mm (1346)
A = Adjustment screw DIN913 M4x8 AF2 mm (4x)
(1352)
Adjustment screw „A“
in thread
Touch probe
Clamping screw „C“
in conical bore
Shank
