Network Video Recorder User Manual
133
11.6 Configure Sensor Alarms
Purpose:
Set the handling action of an external sensor alarm.
11.6.1 Configure Alarm Input
Step 1 Go to System> Event>Normal Event>Alarm Input
Step 2 Select an alarm input item from the list and click .

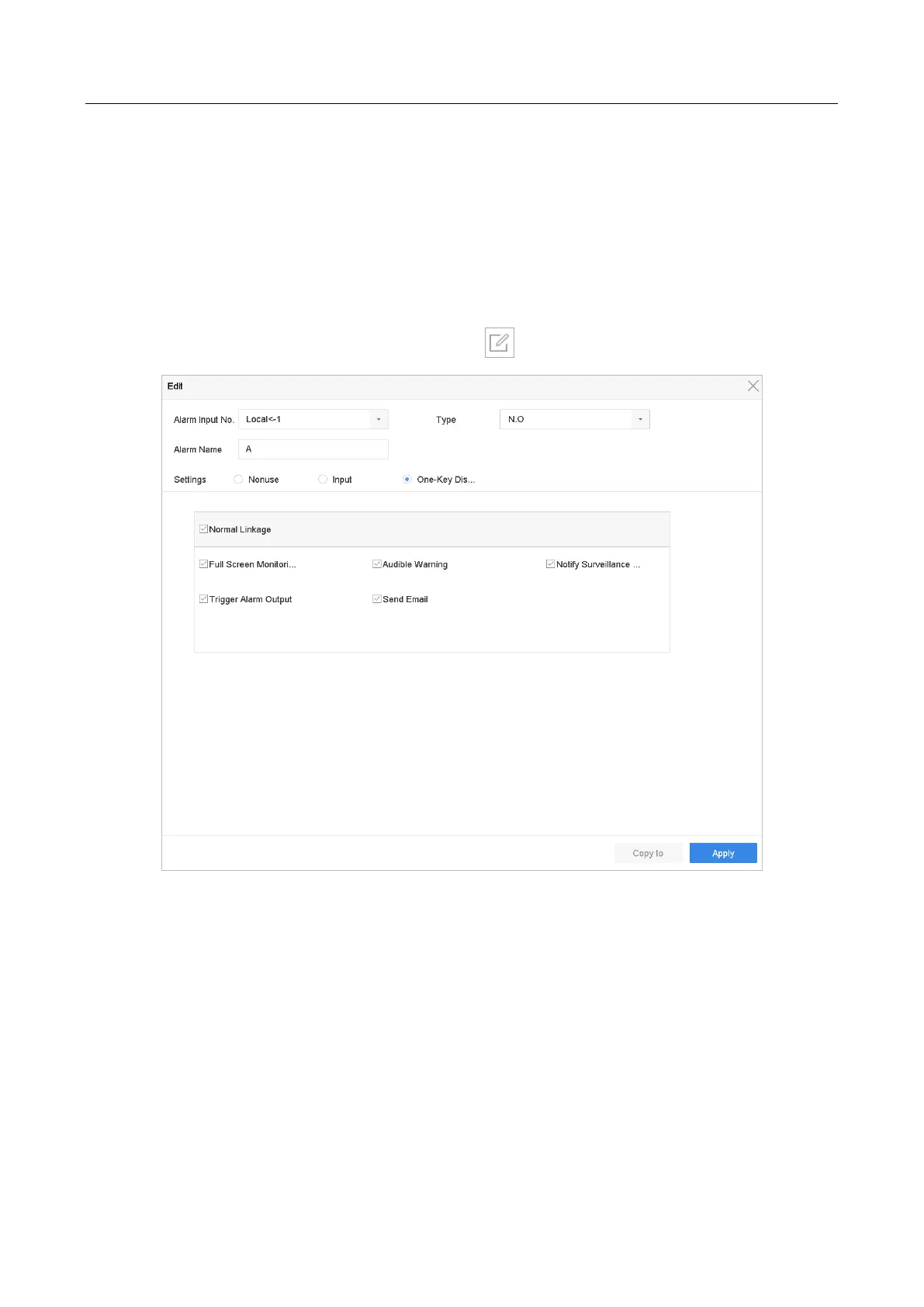

Figure 11-7 Alarm Input
Step 3 Select the alarm input type to N.C or N.O.
Step 4 Edit the alarm name.
Step 5 Check the radio button of Input.
Step 6 Set the arming schedule. Refer to Chapter 11.1 Configure Arming Schedule.
Step 7 Set the linkage actions. Refer to Chapter 11.2 Configure Alarm Linkage Actions.
11.6.2 Configure One-Key Disarming
The one-key disarming enables the device to disarm the alarm input 1 by one-key operation.
To Next Page
