1.4.6 iDS-96000NXI-I16(B) and iDS-96000NXI-I24(B)

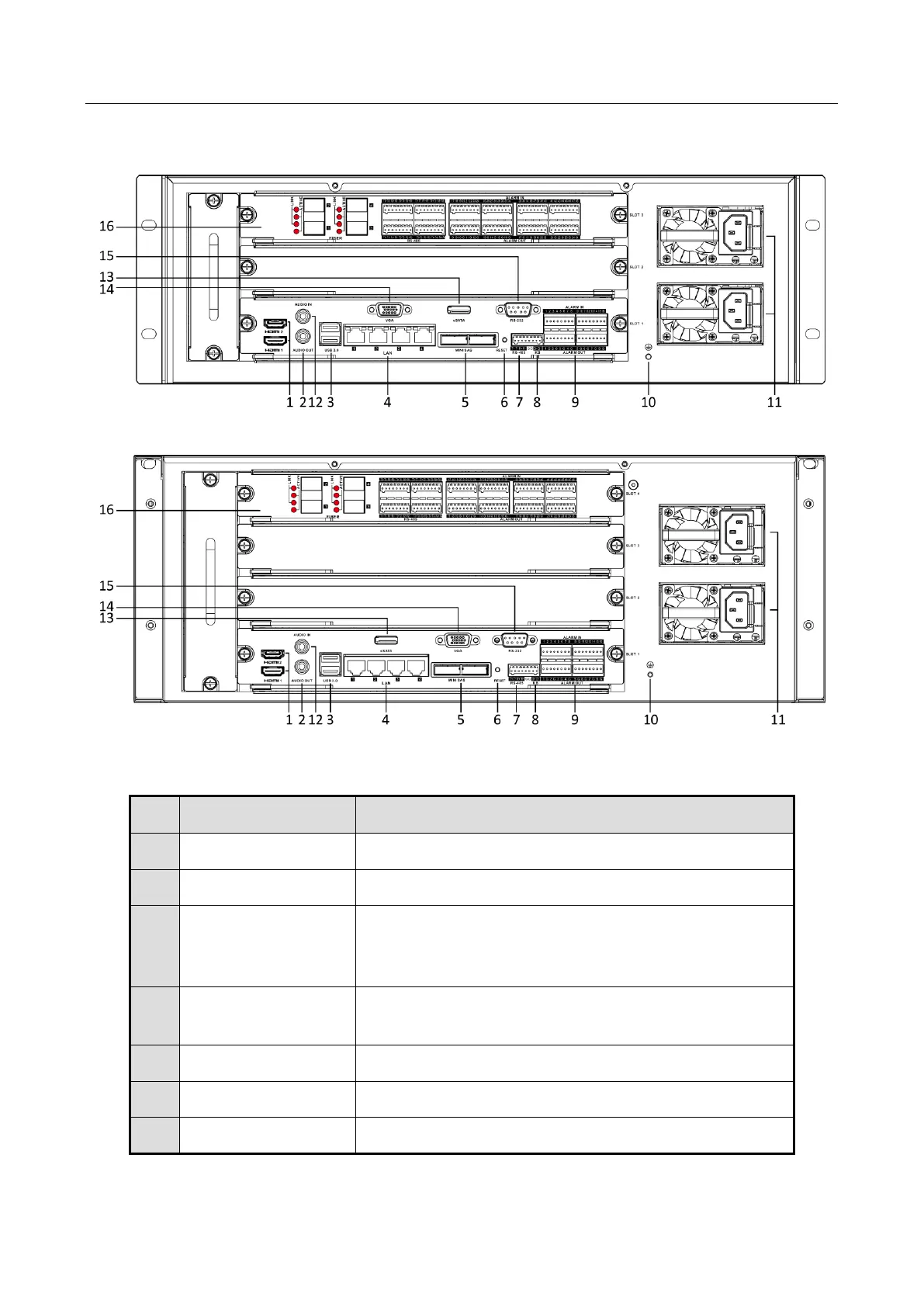

Figure 1-16 iDS-96000NXI-I16(B) Series Rear Panel
Figure 1-17 iDS-96000NXI-I24(B) Series Rear Panel
Table 1-15 Panel Description
No.
Name
Description
1
HDMI1/HDMI2
HDMI video output connector.
2
AUDIO OUT
RCA connector for audio output.
3
USB 3.0 Interface
Universal Serial Bus (USB) interface for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
4
LAN Interface
4 RJ45 10/100/1000 Mbps self-adaptive Ethernet
interfaces provided.
5
MiniSAS Interface
2 miniSAS interfaces
6
Reset
Reset button.
7
RS-485
RS-485 interface.
