HIKVISION DeepinMind iDS-6700NXI-I/8F(B) Series User Manual

Network Video Recorder User Manual
36
1.4.4 iDS-6700NXI-I/16S(B) and iDS-6700NXI-I/8F(B) Series
2
1
3
4
6
7 9
5 8

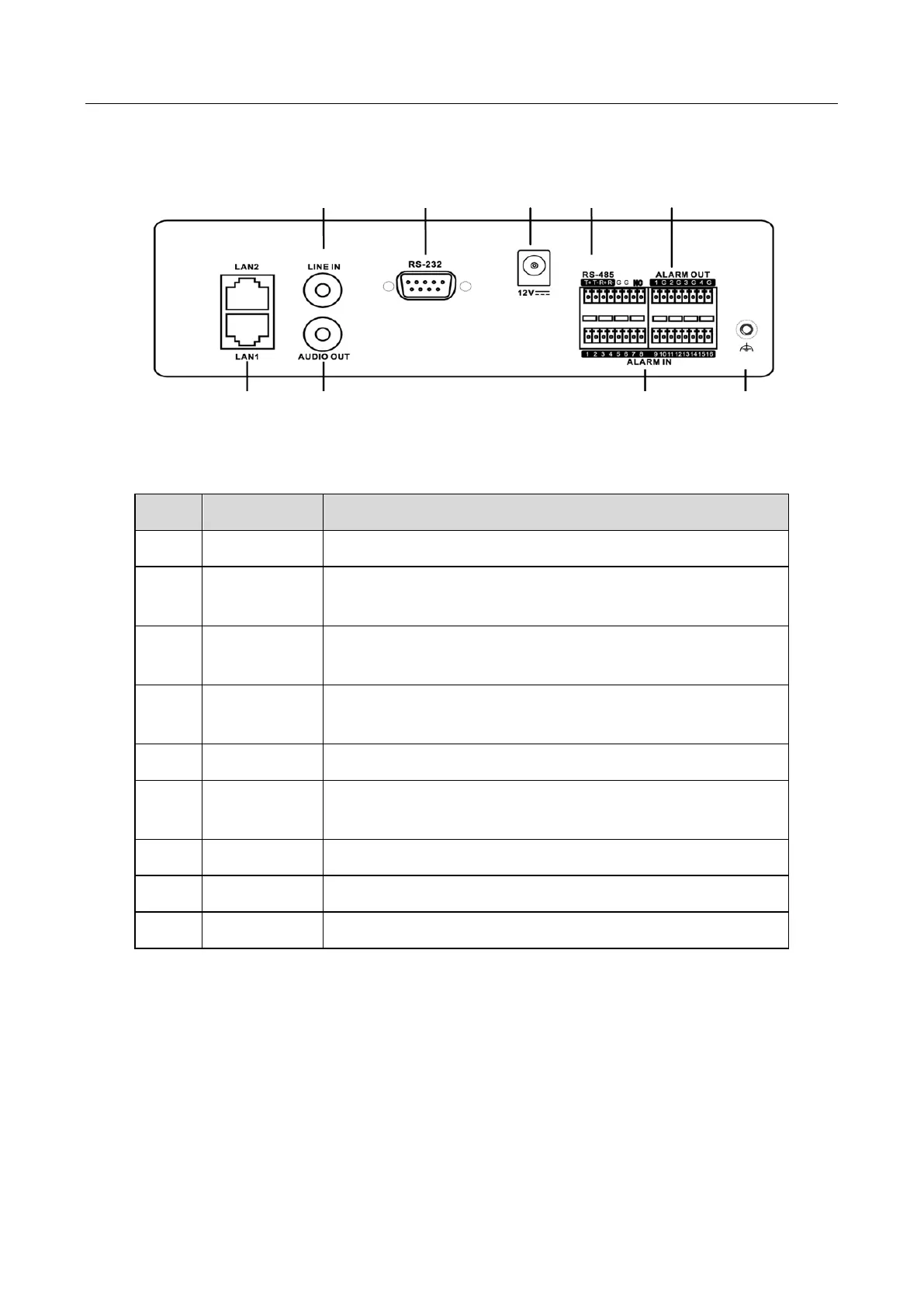

Figure 1-13 iDS-6700NXI-I/16S(B) Series Rear Panel
Table 1-12 Interface Description
Index
Item
Description
1
LAN1/LAN2
10M/100Mbps adaptive Ethernet interface.
2
LINE IN
3.5mm interface for line in; connect to audio input device
or active pick-up, microphone, etc.
3
AUDIO OUT
3.5mm interface; connect to audio output device, e.g.,
loudspeaker, etc.
4
RS-232
Serial interface for configuration of device’s parameters or
used as transparent channel.
5
Power Supply
12 VDC power supply.
6
RS-485
RS-485 serial interface; connect to pan/tilt unit, speed
dome, etc.
7
ALARM IN
Relay alarm input.
8
ALARM OUT
Relay alarm output.
9
GND
Grounding.
