HIKVISION DeepinMind iDS-6700NXI-I/8F(B) Series - Ids-9600 NXI-I16;8 F(B) and Ids-9600 NXI-I16;16 S(B) Series

Network Video Recorder User Manual
19
1.1.2 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series

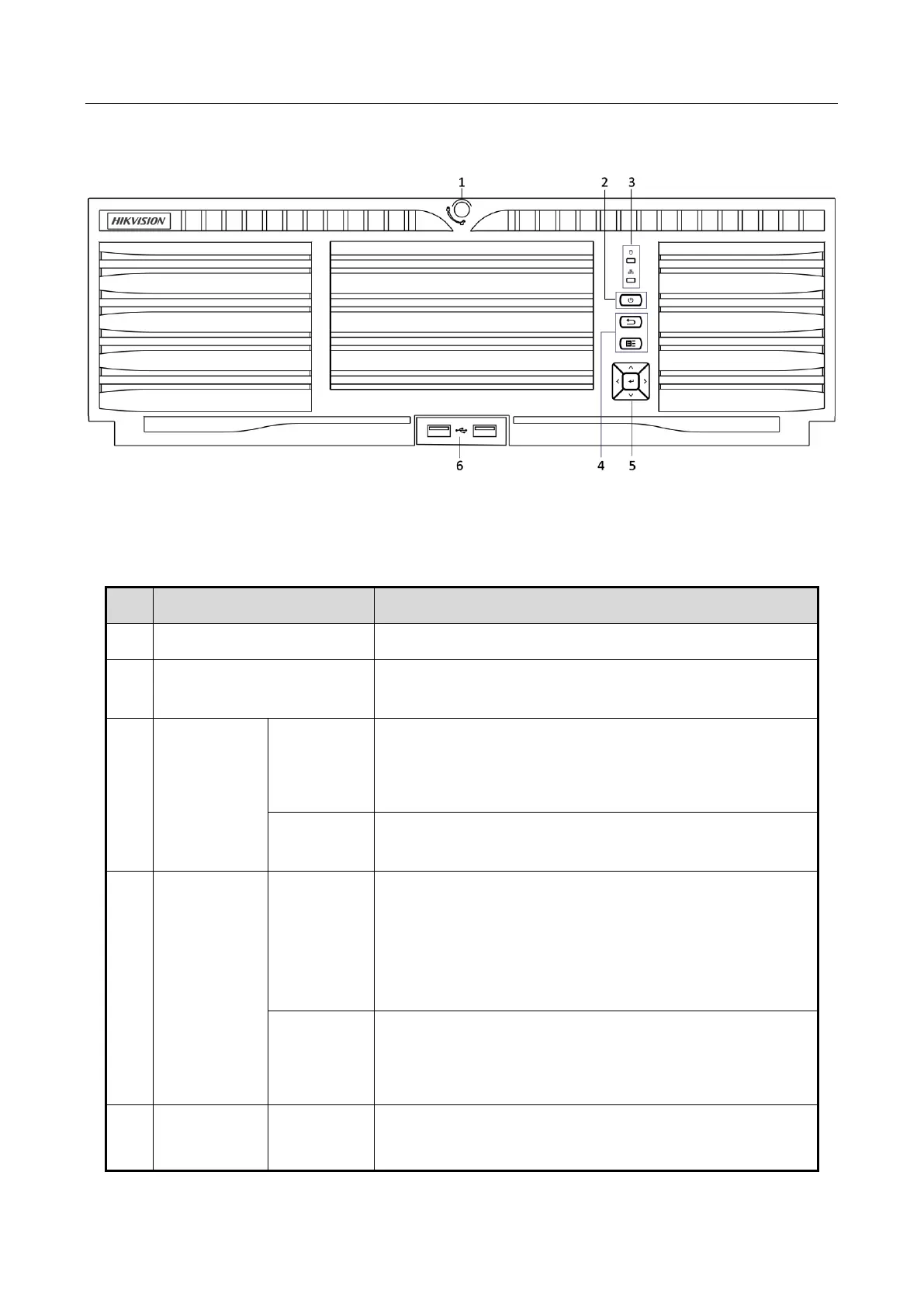

Figure 1-2 Front Panel
Table 1-2 Description
No.
Name
Description
1
Panel Lock
Locks or unlocks the panel by the key.
2
Power Switch
Powers on/off device. Solid blue indicates device is
powered on. Solid red indicates device is shut down.
3
Status
Indicator
HDD
●
Solid red: At least one HDD is installed.
●
Unlit: No HDD is detected.
●
Flashing red: HDD is reading/writing.
Tx/Rx
Flashing blue indicates network communication is
normal.
4
Shortcut
Button
Exit
●
Returns to the previous menu.
●
Press it twice quickly to switch the main and auxiliary
port.
●
In live view mode, press it to enter PTZ control
interface.
Menu
●
Press it to pop up main menu.
●
Hold it for 5 seconds to turn on/off button sound.
●
During playback, press it to show/hide control panel.
5
Control
Button
ENTER
●
Confirms selection in any of the menu modes.
●
Checks the checkbox fields.
