Network Video Recorder User Manual
180
● Server Port: Server port (8000 by default) should be configured for remote client software
access and its valid range is 2000 to 65535.
● HTTP Port: HTTP port (80 by default) should be configured for remote web browser access.
● Multicast IP: Multicast can be configured to enable live view for cameras that exceed the
maximum number allowed through network. A multicast IP address covers Class-D IP ranging
from 224.0.0.0 to 239.255.255.255 and it is recommended to use the IP address ranging from
239.252.0.0 to 239.255.255.255.
When adding a device to the CMS software, the multicast address must be the same as that of
the device.
● RTSP Port: RTSP (Real Time Streaming Protocol) is a network control protocol designed for use
in entertainment and communications systems to control streaming media servers. The port is
554 by default.

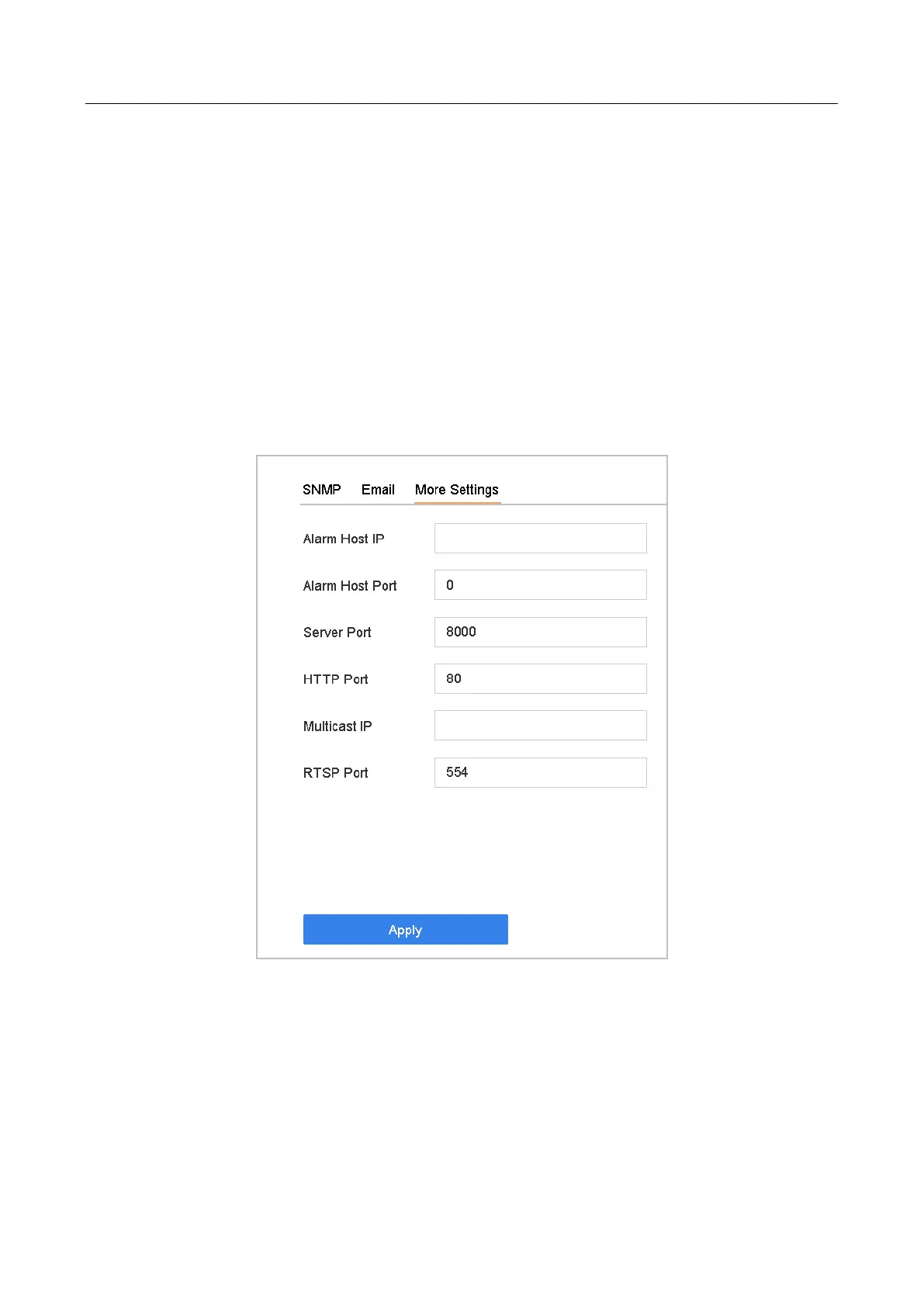

Figure 16-8 Port Settings
