Network Video Recorder User Manual
87

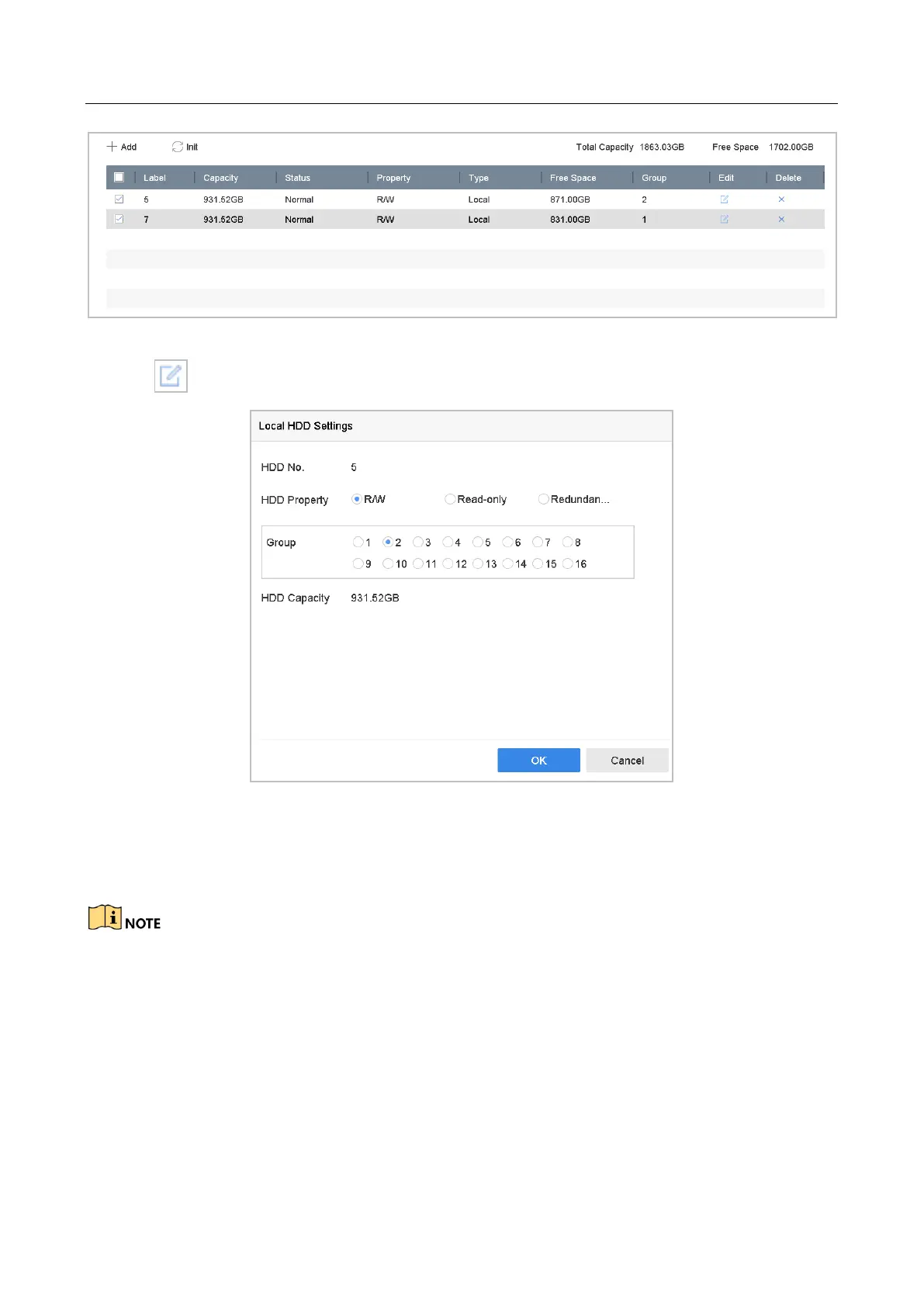

Figure 7-5 Storage Device
Step 3 Click to enter the Local HDD Settings interface.
Figure 7-6 Local HDD Settings
Step 4 Select the Group number for the current HDD.
Step 5 Click OK.
Regroup the cameras for HDD if the HDD group number is changed.
Step 6 Go to Storage> Storage Mode.
Step 7 Check the checkbox of Group tab.
Step 8 Select the group No. from the list.
Step 9 Check the checkbox to select the IP camera (s) to record on the HDD group.
