Video Security Control Panel User Manual

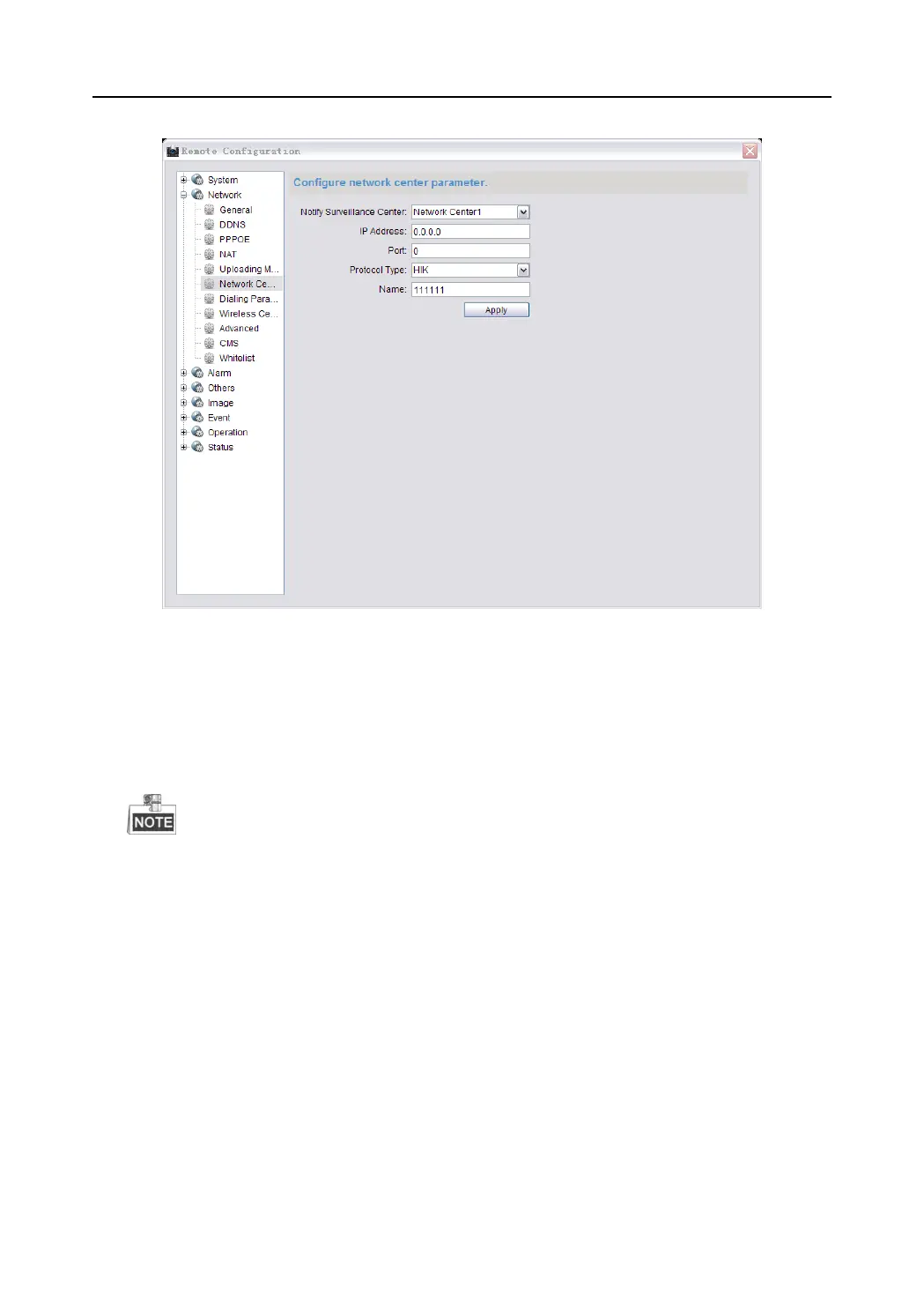

2. Click and select a network center. Two centers are selectable.
3. Click the dropdown menu to select a sever type. Two sever types are available: IP4/IP6 and domain.
4. Enter the IP address which is used to communicate with the network alarm receiving center.
5. Enter the port NO. For communicating with the alarm receiving center.
6. Click the dropdown menu to select the protocol type.
7. Enter the username which is applying for displaying in the alarm receiving center.
The length of the username should be 6 characters.
Only numeric (0~9), and letter (A~F&a~f) are valid for this username.
Dialing Center Settings
Purpose:
You can configure the parameters(such as report uploading time period, center name, phone number and so on)
for each dialing center in this section.
Steps:
1. Enter the dialing center configuration page.
To Next Page
