Video Security Control Panel User Manual
{7} Partition 5
{8} Partition 6
{9} Partition 7
{10} Partition 8
{3}~{10} It indicates to enable/disable prior schedule of Partition No.1~No.8.
{11} End the command.
Prior Schedule Time Parameter Settings
To configure the time parameters of the prior schedule, please refer to the command below.

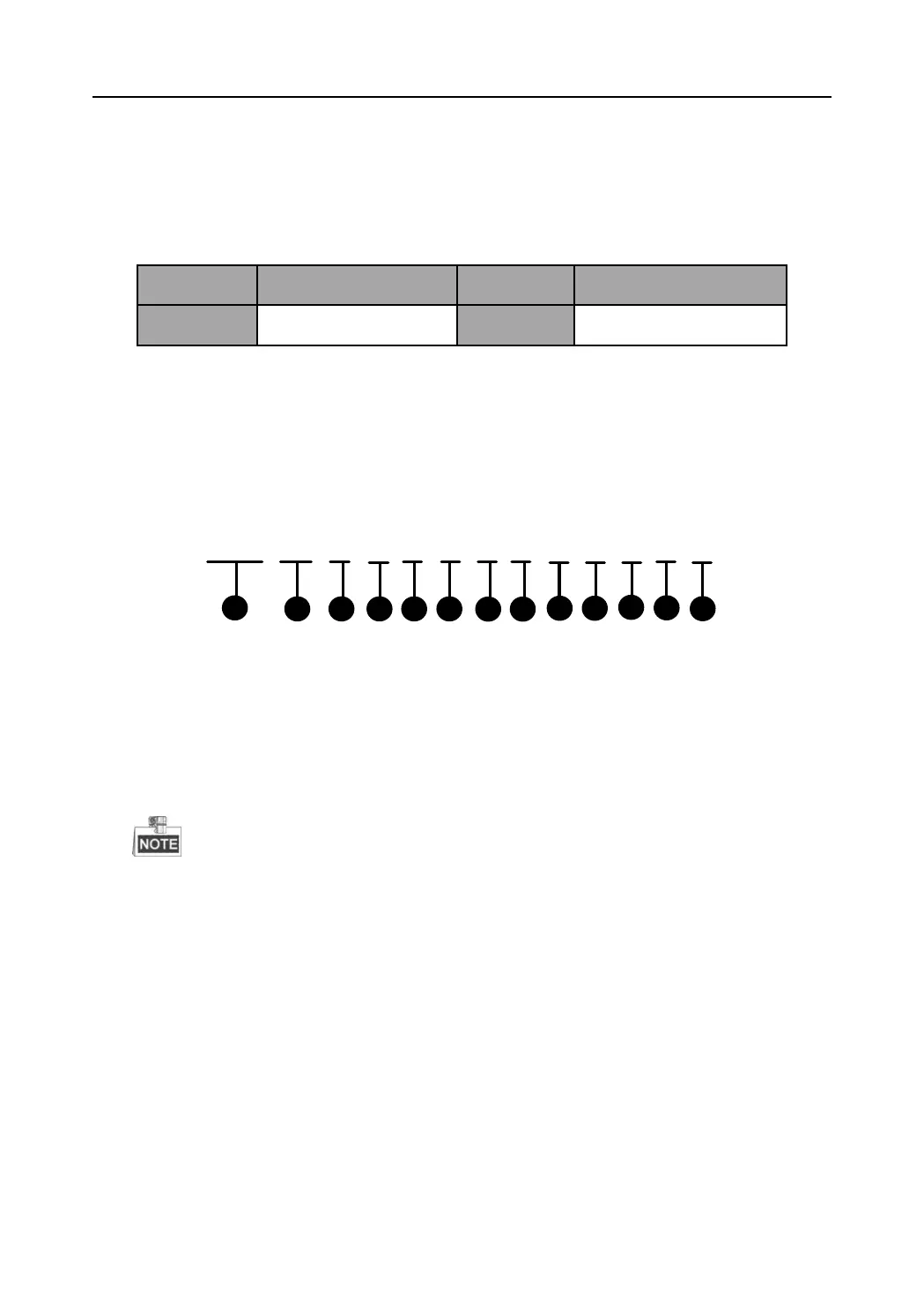

696 00 0 0 0 0 0 0 0 0 0 E #
1
2 4 63 5
87
9
10
11 12
13
{1} Prior Schedule Time Parameter Settings Command Address: 696.
{2} It indicates the prior schedule number. 01~30 indicate prior schedule No.1~No.30.
{3} It presents the time bucket composed by {4}~{11}. The value range is 1~8.
{4}~{11} It indicates the start time and end time during the time bucket of {3}.
Start Time: {4}{5}:{6}{7}
End Time: {8}{9}:{10}{11}
When you set the start and end time as 00:00 and 00:00, all the settings from the present time bucket
to the maximum time bucket will be cleared.
When you set the start and end time as non-zero, the previous time bucket must be non-zero.
When you set the start and end time as non-zero, only Arming in {12} can be set.
When you set the start and end time as non-zero, end time must be greater than start time in every
time bucket.
When you set the start and end time as non-zero, the start time must be 5min greater than the end
time of the previous time bucket.
When you set the start and end time as non-zero, if the time bucket is overlapped with the latter ones,
or the difference between them is less than 5min, all the settings of the latter ones will be cleared.
{12} Three types of Arming/Disarming.
