User Manual of WIFI Network Video Recorder
105
8.6 Setting Event Hint Display
Purpose:
When an event or exception happens, a hint will display on the lower-left corner of live view image. And you can
click the hint icon to check the details. Besides, the event to be displayed is configurable.
Steps:
1. Enter the Exception settings interface.
Menu > Configuration > Exceptions
2. Check the checkbox of Enable Event Hint.

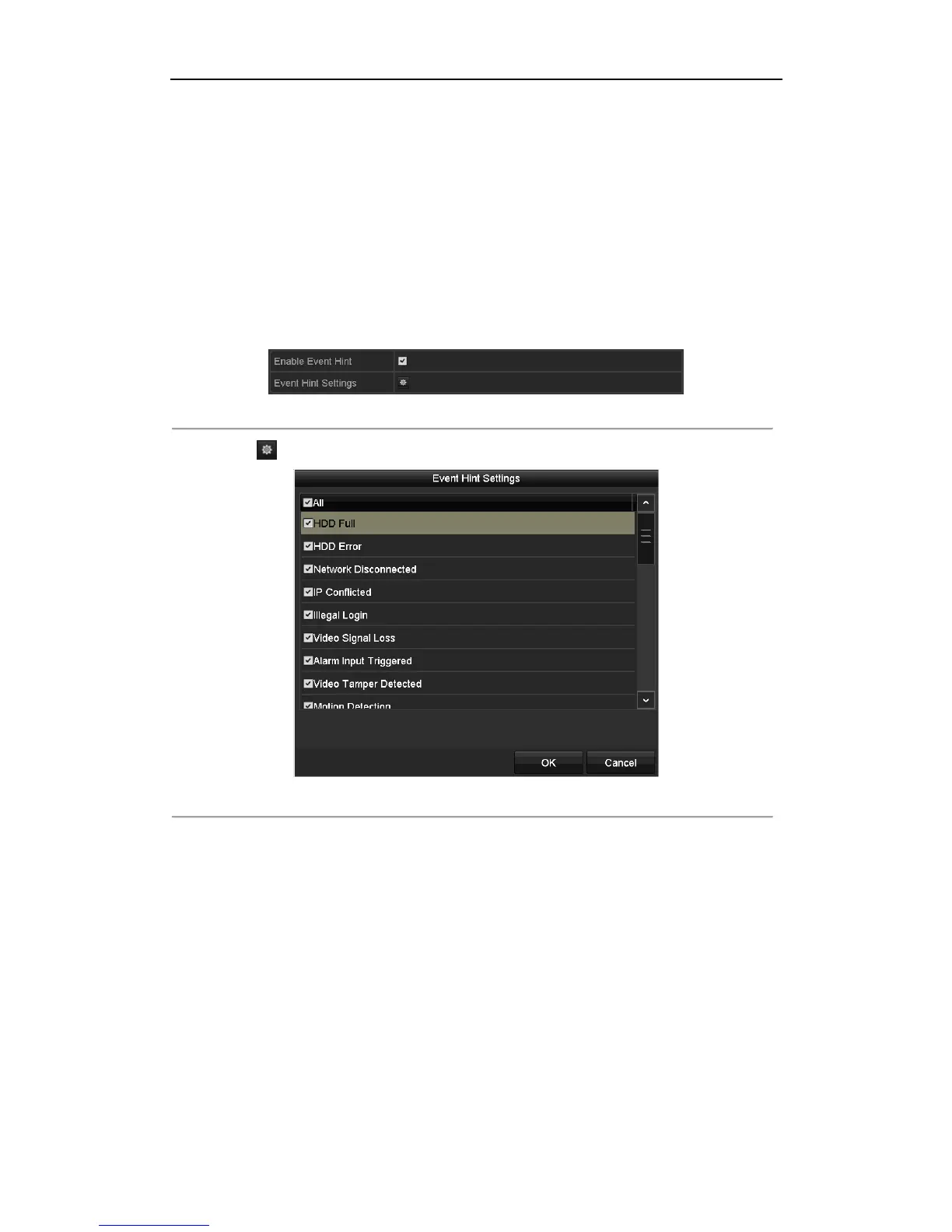

Figure 8. 17 Event Hint Settings Interface
3. Click the to set the type of event to be displayed on the image.
Figure 8. 18 Event Hint Settings Interface
4. Check the checkbox of events to hint.
5. Click the OK button to save the settings.

HIKVISION DS-7108NI Specifications

General

Model	DS-7108NI
Channels	8
HDD Bays	1
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA	1 SATA interface
Operating Humidity	10% to 90%
Type	Network Video Recorder
Max HDD Capacity	6TB
Video Output	1 × VGA, 1 × HDMI
HDMI Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Decoding Format	H.264
Resolution	8MP
Capability	8-ch @1080p
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
