User Manual of WIFI Network Video Recorder
51
5.1 Configuring Parameters
Purpose:
By configuring the parameters you can define the parameters which affect the image quality, such as the
transmission stream type, the resolution and so on.
Before you start:
1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. (Menu >
HDD > General)

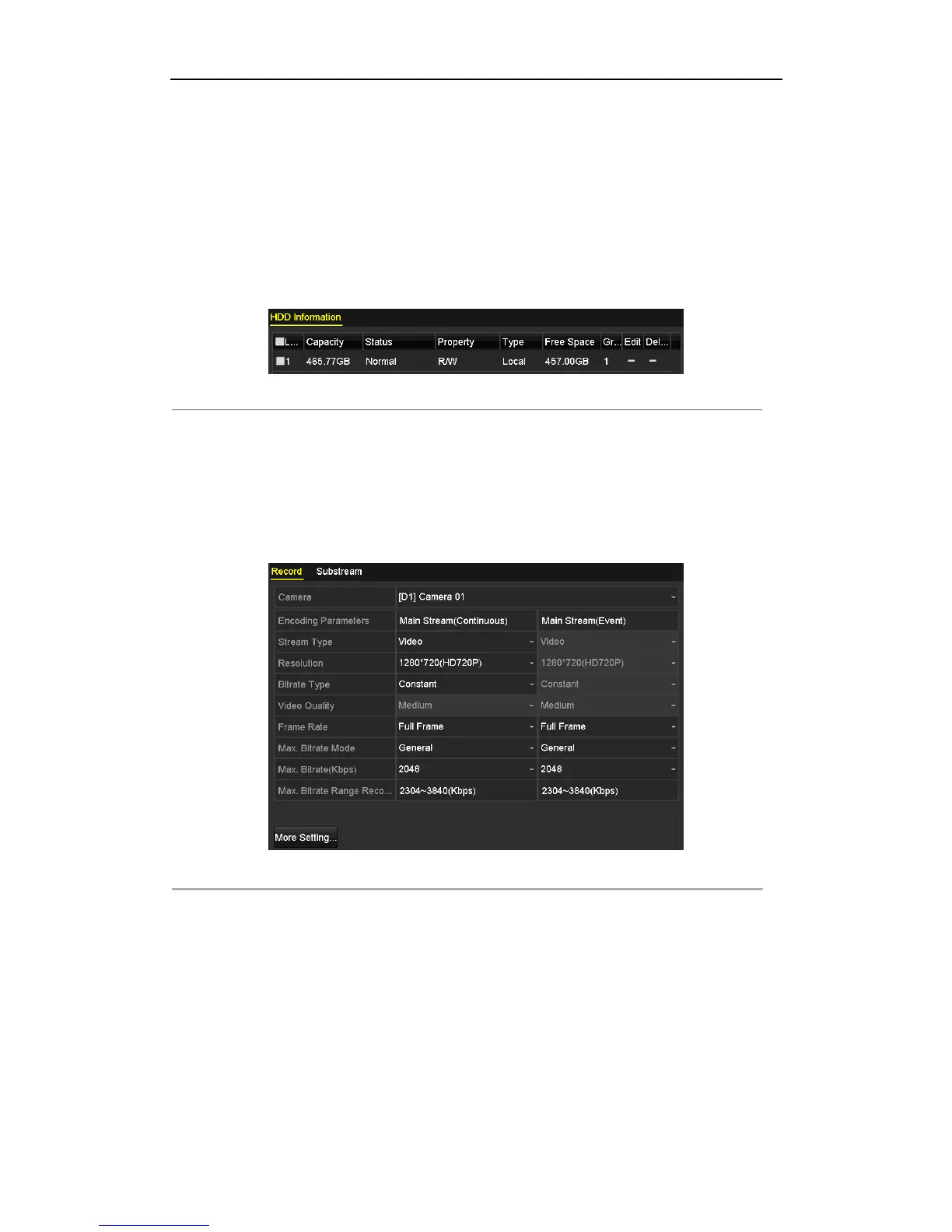

Figure 5. 1 HDD- General
2. Check the storage mode of the HDD.
1) Click Advanced to check the storage mode of the HDD.
2) Please set the maximum record capacity For detailed information, see 12.1 Configuring Quota Mode.
Steps:
1. Enter the Record settings interface to configure the recording parameters.
Menu > Record > Parameters
Figure 5. 2 Recording Parameters
2. Parameters Setting for Recording
1) Select Record tab page to configure. You can configure the stream type, the resolution, and other
parameters on your demand.
2) Click the More Settings button to set the advanced parameters for recording and then click OK button to
finish editing.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7108NI and is the answer not in the manual?

HIKVISION DS-7108NI Specifications

General IconGeneral
ModelDS-7108NI
Channels8
HDD Bays1
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA1 SATA interface
Operating Humidity10% to 90%
TypeNetwork Video Recorder
Max HDD Capacity6TB
Video Output1 × VGA, 1 × HDMI
HDMI Output Resolution1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input1-channel RCA
Audio Output1-channel RCA
Decoding FormatH.264
Resolution8MP
Capability8-ch @1080p
Network Interface1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface2 USB 2.0
Operating Temperature-10 °C to +55 °C (+14 °F to +131 °F)
