User Manual of WIFI Network Video Recorder
46
4.3.5 Customizing Patterns
Purpose:
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ movement
according to the predefined path.
Steps:
1. Enter the PTZ Control interface.
Menu > Camera > PTZ

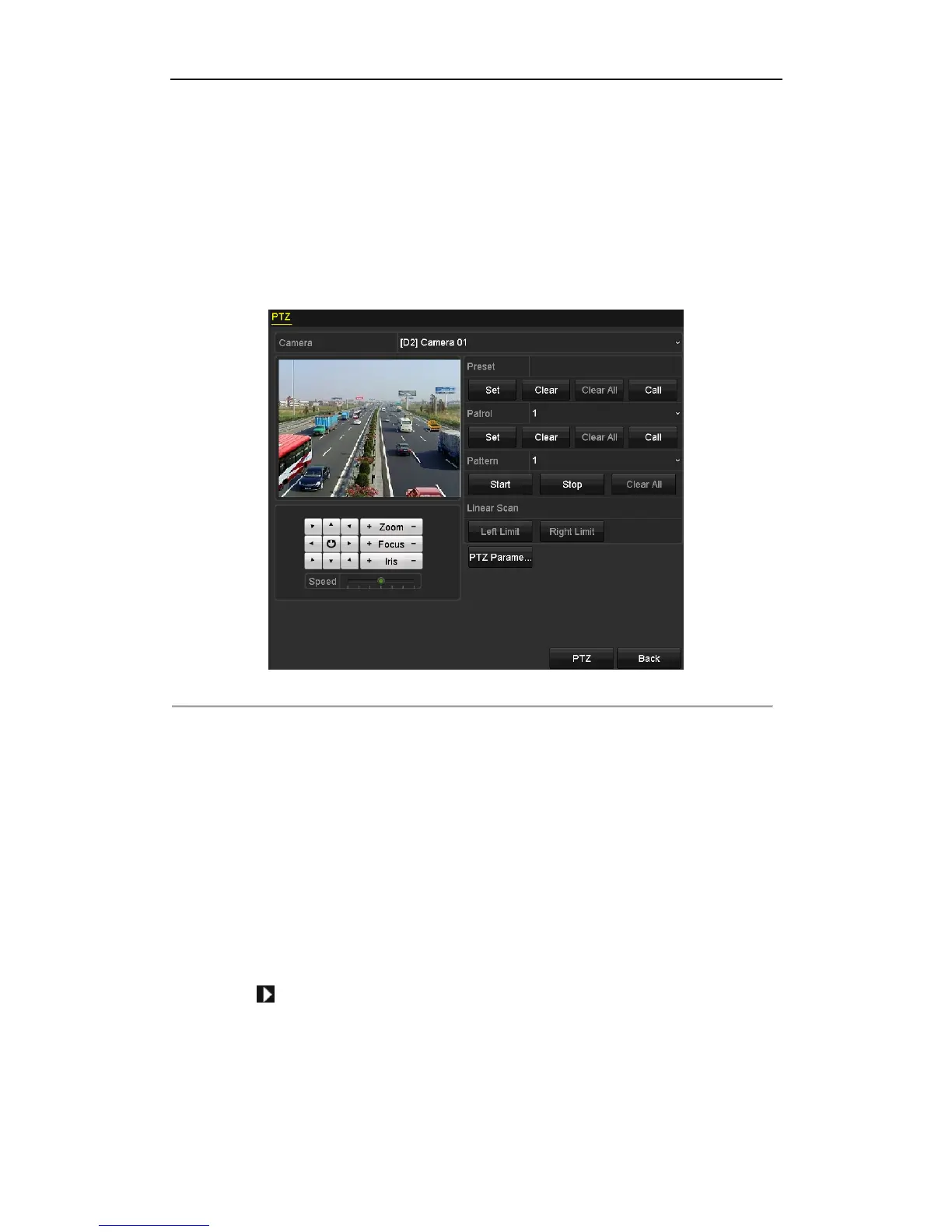

Figure 4. 9 PTZ Settings
2. Choose pattern number in the drop-down list.
3. Click the Start button and click corresponding buttons in the control panel to move the PTZ camera, and
click the Stop button to stop it.
The movement of the PTZ is recorded as the pattern.
4.3.6 Calling Patterns
Purpose:
Follow the procedure to move the PTZ camera according to the predefined patterns.
Steps:
1. Enter PTZ Control interface. For details, please refer to 4.2 PTZ Control Panel.
2. Click the button to show the General settings interface.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7108NI and is the answer not in the manual?

HIKVISION DS-7108NI Specifications

General IconGeneral
ModelDS-7108NI
Channels8
HDD Bays1
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA1 SATA interface
Operating Humidity10% to 90%
TypeNetwork Video Recorder
Max HDD Capacity6TB
Video Output1 × VGA, 1 × HDMI
HDMI Output Resolution1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input1-channel RCA
Audio Output1-channel RCA
Decoding FormatH.264
Resolution8MP
Capability8-ch @1080p
Network Interface1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface2 USB 2.0
Operating Temperature-10 °C to +55 °C (+14 °F to +131 °F)
