User Manual of WIFI Network Video Recorder
106
8.7 Triggering or Clearing Alarm Output
Manually
Purpose:
Sensor alarm can be triggered or cleared manually. If Manually Clear is selected in the drop-down list of dwell
time of an alarm output, the alarm can be cleared only by clicking Clear button in the following interface.
Steps:
1. Select the alarm output you want to trigger or clear and make related operations.
Menu > Manual > Alarm
2. Trigger / clear an alarm output.
1) Click to select an Alarm Output No..
2) Click Trigger or Clear to trigger or clear the alarm output.
3. Click Trigger All to trigger all and click Clear All to clear all alarm outputs.

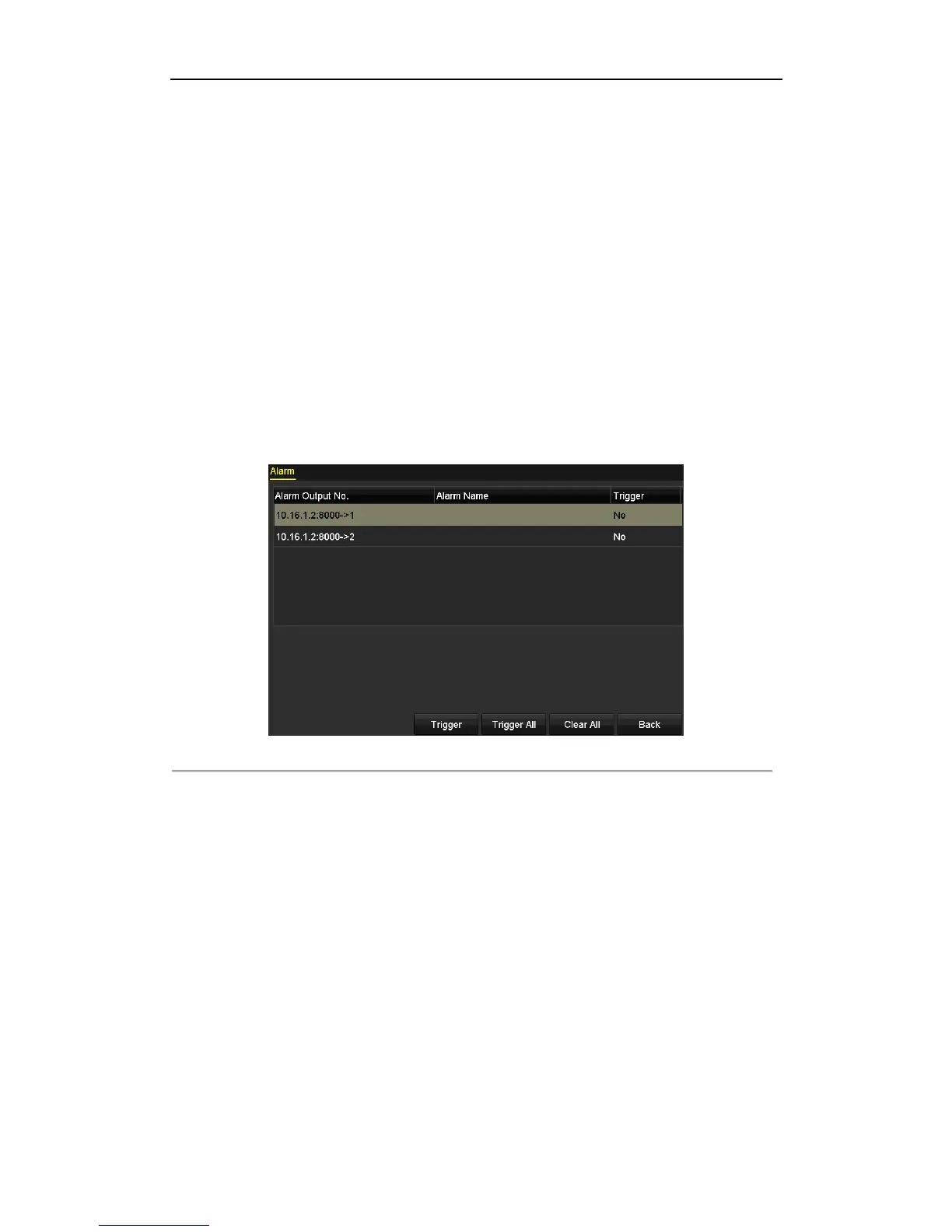

Figure 8. 19 Clear or Trigger Alarm Output Manually

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7108NI and is the answer not in the manual?

HIKVISION DS-7108NI Specifications

General IconGeneral
ModelDS-7108NI
Channels8
HDD Bays1
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA1 SATA interface
Operating Humidity10% to 90%
TypeNetwork Video Recorder
Max HDD Capacity6TB
Video Output1 × VGA, 1 × HDMI
HDMI Output Resolution1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input1-channel RCA
Audio Output1-channel RCA
Decoding FormatH.264
Resolution8MP
Capability8-ch @1080p
Network Interface1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface2 USB 2.0
Operating Temperature-10 °C to +55 °C (+14 °F to +131 °F)
