HIKVISION DS-7108NI User Manual

User Manual of WIFI Network Video Recorder
12
1.1 Front Panel and Rear Panel

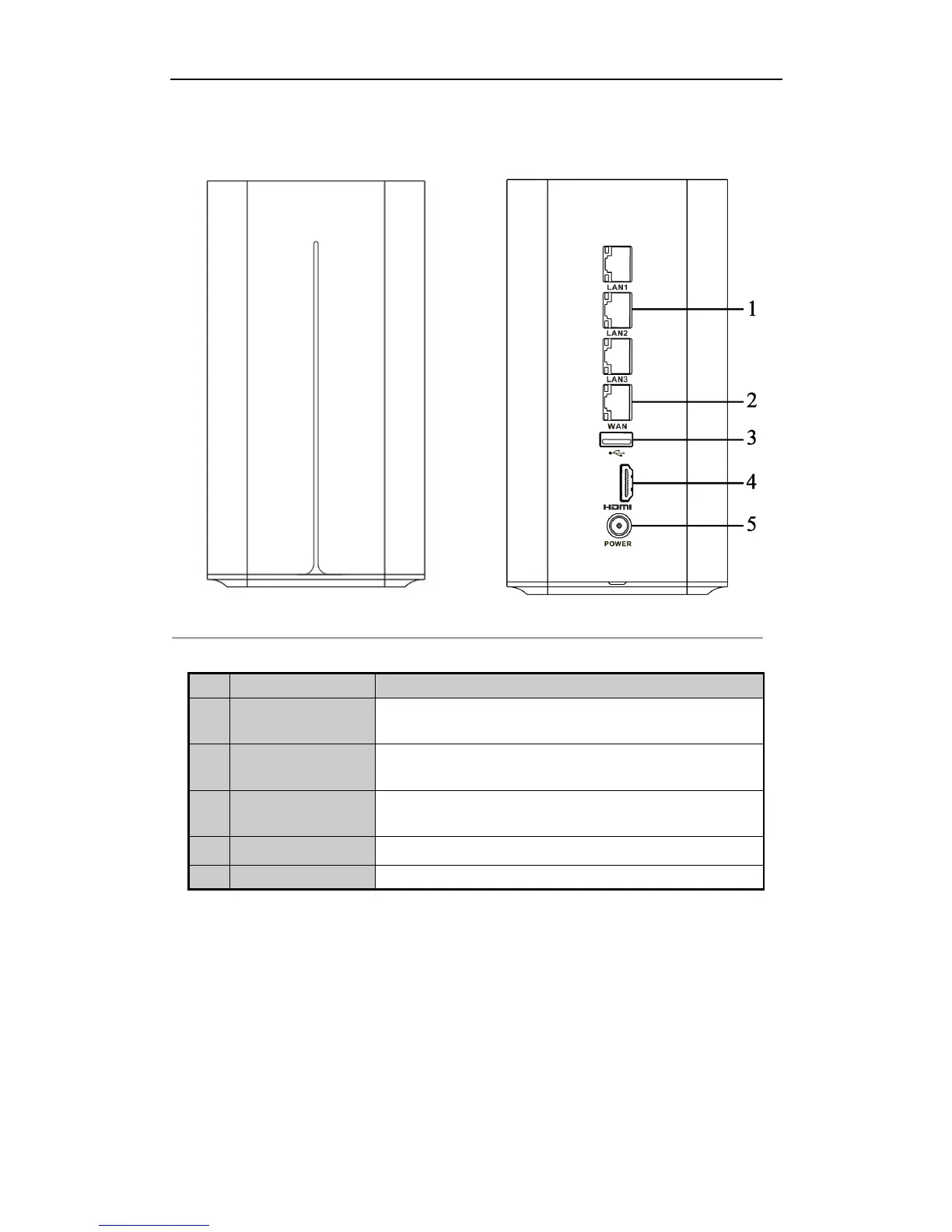

Figure 1. 1 Front Panel
Figure 1. 2 Rear Panel
Table 1. 1 Description of Rear Panel Interface
No.
Name
Description
1
LAN Interface (1 ~ 3)
3 RJ-45 10 /100Mbps network interfaces for LAN (Local Area
Networks).
2
WAN Interface
1 RJ-45 10 /100 Mbps network interface for WAN (Wide Area
Networks).
3
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB writer.
4
HDMI
HDMI video output connector.
5
POWER
12VDC Power supply.

HIKVISION DS-7108NI Specifications

General

Model	DS-7108NI
Channels	8
HDD Bays	1
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA	1 SATA interface
Operating Humidity	10% to 90%
Type	Network Video Recorder
Max HDD Capacity	6TB
Video Output	1 × VGA, 1 × HDMI
HDMI Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Decoding Format	H.264
Resolution	8MP
Capability	8-ch @1080p
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
