HIKVISION DS-7108NI User Manual

User Manual of WIFI Network Video Recorder
165

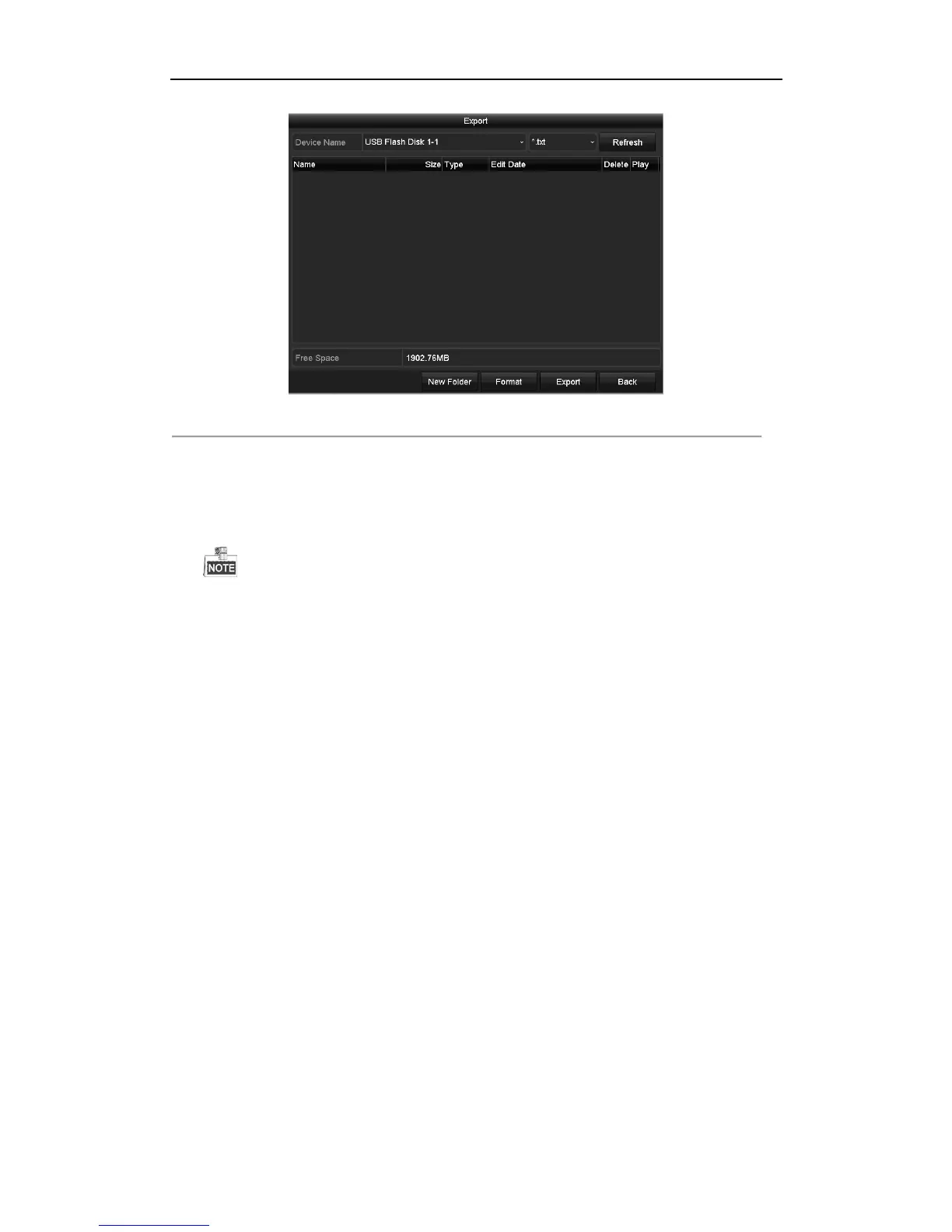

Figure 14. 5 Export Log Files
7. Select the backup device from the drop-down list of Device Name.
8. Click the Export to export the log files to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the Format button
to format the backup device before log export.
 Please connect the backup device to NVR before operating log export.
 The log files exported to the backup device are named by exporting time, e.g.,
20110514124841logBack.txt.
To export all the log files:
Steps:
1. Enter the Log Information interface.
Menu > Maintenance > Log Information
2. Click the Export All to export all the log files stored in the HDD.

HIKVISION DS-7108NI Specifications

General

Model	DS-7108NI
Channels	8
HDD Bays	1
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA	1 SATA interface
Operating Humidity	10% to 90%
Type	Network Video Recorder
Max HDD Capacity	6TB
Video Output	1 × VGA, 1 × HDMI
HDMI Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Decoding Format	H.264
Resolution	8MP
Capability	8-ch @1080p
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
