User Manual of WIFI Network Video Recorder
22

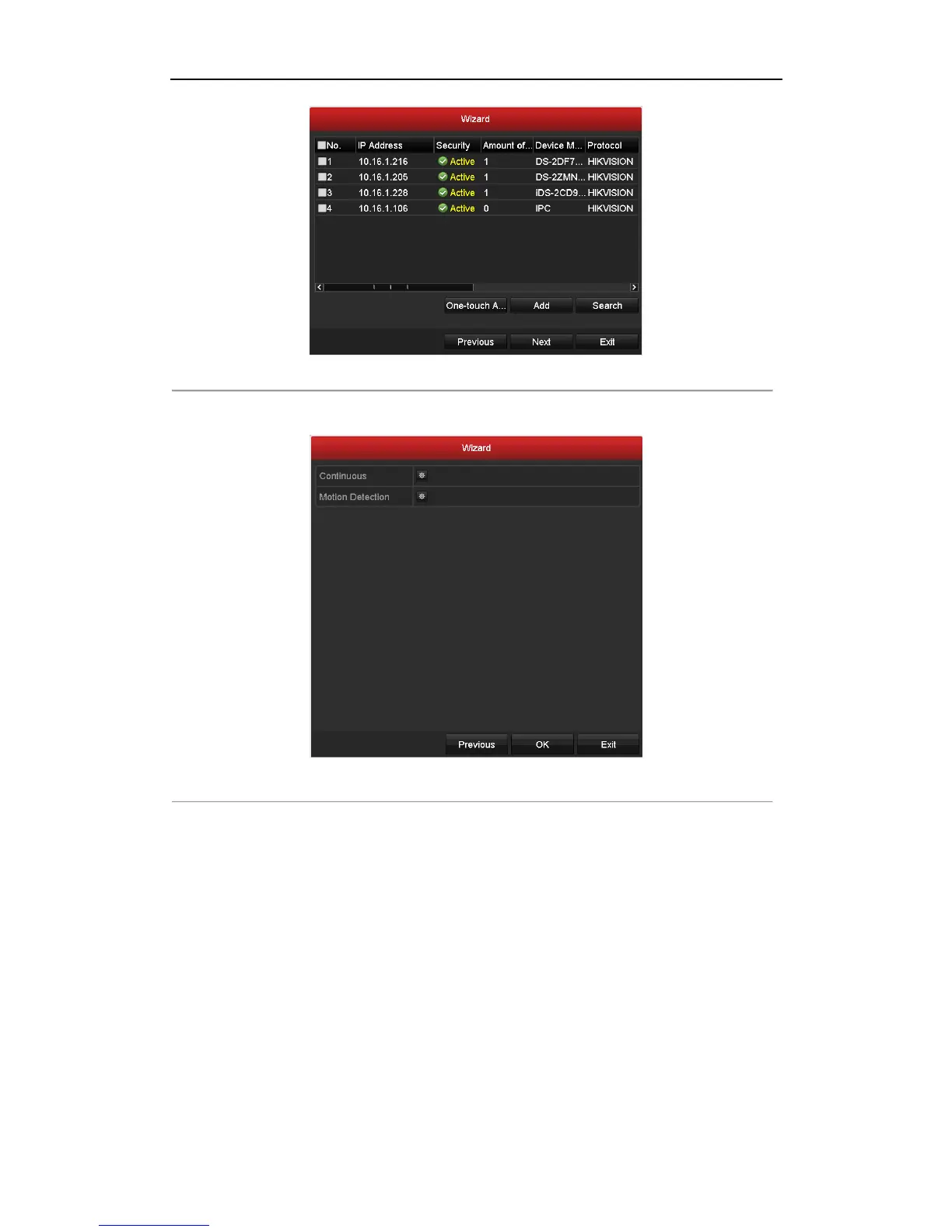

Figure 2. 13 IP Camera Management
15. Click Next button. Configure the recording for the added IP Cameras.
Figure 2. 14 Record Settings
16. Click OK to complete the startup Setup Wizard.

HIKVISION DS-7108NI Specifications

General

Model	DS-7108NI
Channels	8
HDD Bays	1
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA	1 SATA interface
Operating Humidity	10% to 90%
Type	Network Video Recorder
Max HDD Capacity	6TB
Video Output	1 × VGA, 1 × HDMI
HDMI Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Decoding Format	H.264
Resolution	8MP
Capability	8-ch @1080p
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
