26
Set Camera Order
The Camera Order settings allow you to set camera sequence in selectable live view display mode. See the following
figure:

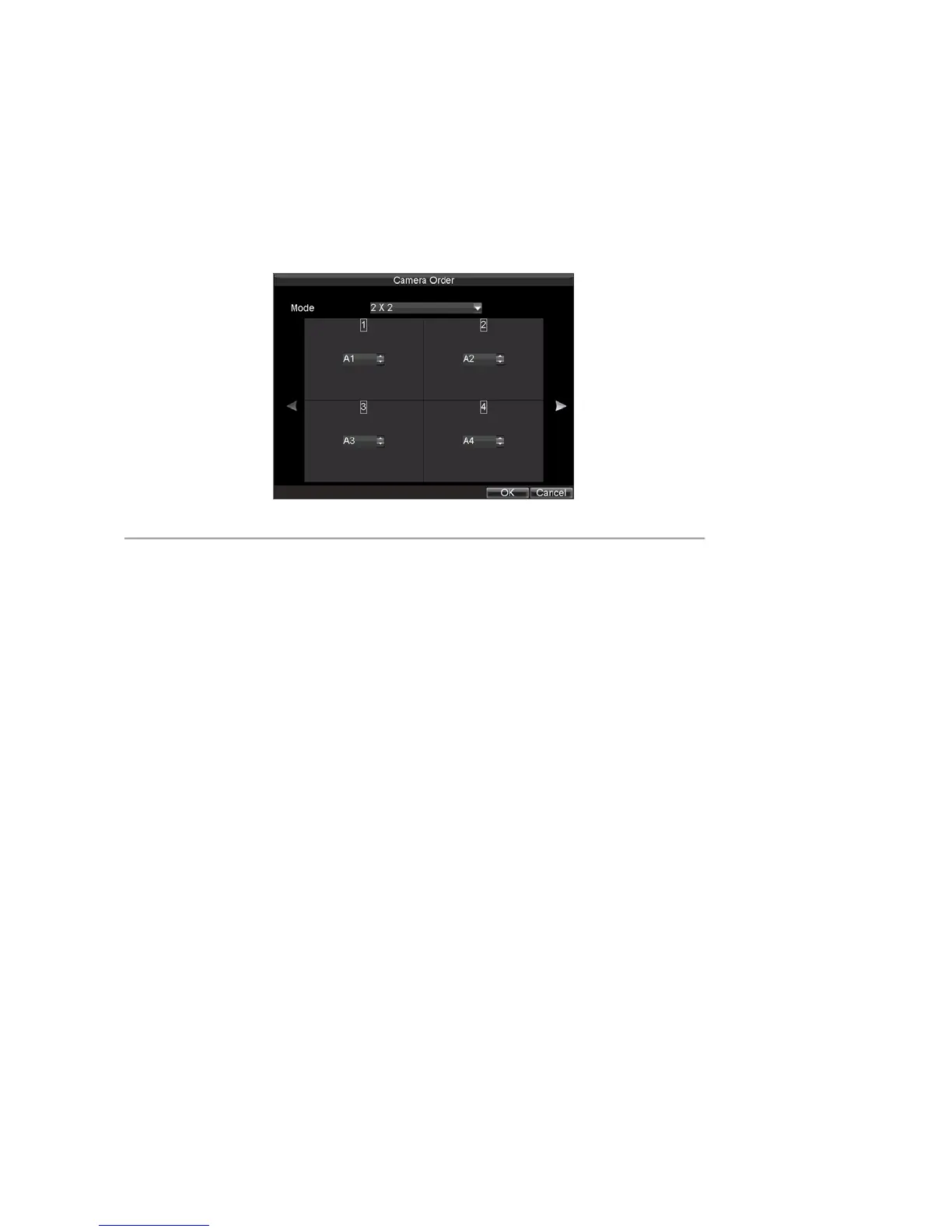

Figure 5. Camera Order Settings
Operate the following steps to set camera order:
1. Enter the Display Settings menu (Menu > Setting > Display) and click Set in the Camera Order item.
2. Select the video output port and the display mode (1×1, 2×2 and 3×3 modes selectable).
Note:
DS-7604NI-S/M model only provide the Main Vout.
3. Use the direction buttons on front panel to move to the display pane for setting press the Enter button
to confirm the selection.
4. Use the direction buttons on front panel to select the camera you want to be views in the display pane.
The option ‘×’ indicates no display of camera.
5. Press Enter button to confirm the selection.
Note:
DS-7604NI-S/M and DS-7604NI-S models provide no analog camera connection, and it only
allows user to set the order for the added IP cameras.
