47
Configure Alarms
Motion Detection Alarm
Operate the following steps to configure Motion Detection Recording:
1. Enter Camera Setting:
Click Menu > Setting > Camera to access the Camera Management dialog box, shown in Figure 1.
Select the channel to configure motion detection and click Set.
Note:
DS-7604NI-S/M and DS-7604NI-S models provide no analog camera connection, please
select IP camera for configuration.

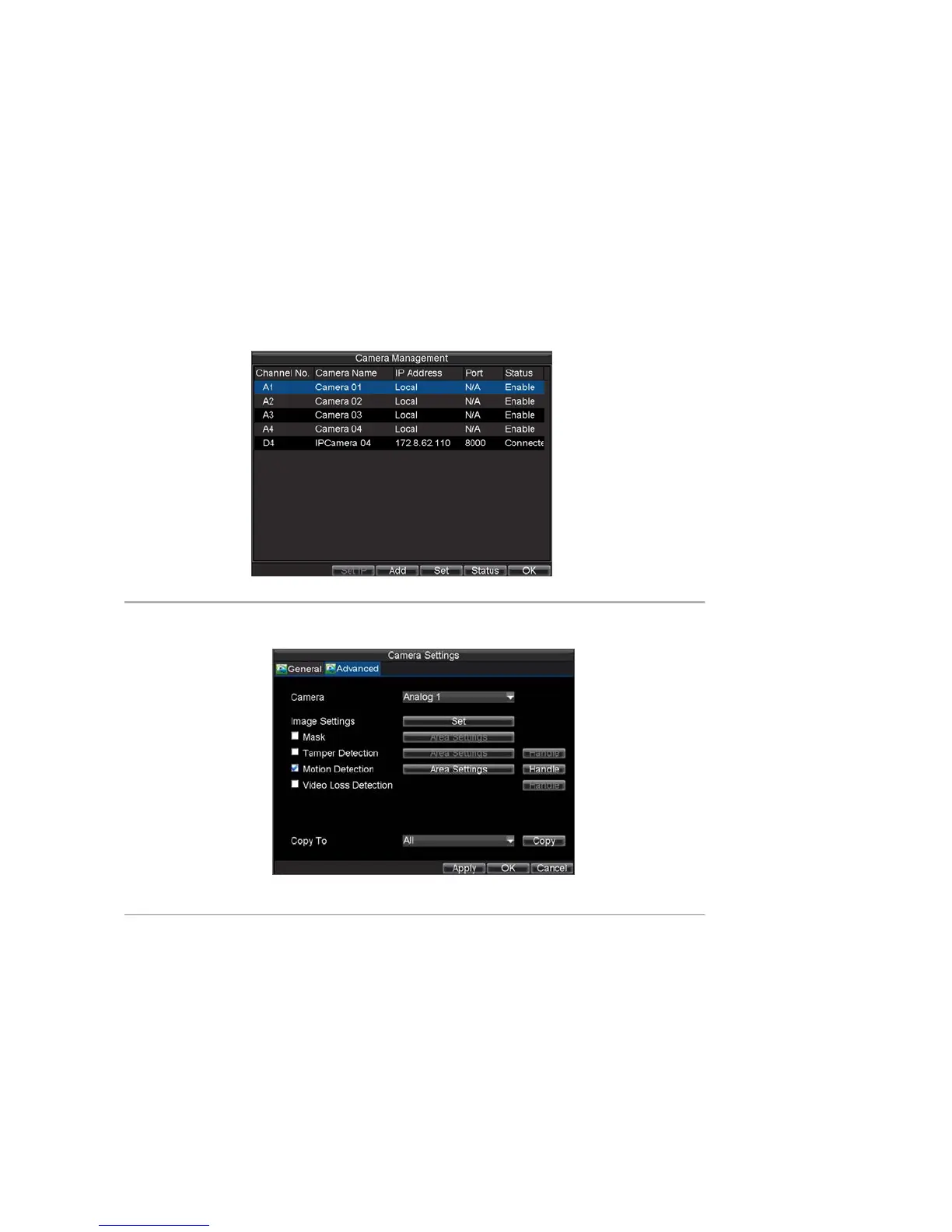

Figure 1. Camera Management Interface
2. Select the Advanced tab to enter the Advanced Camera Settings menu, shown in Figure 2.
Figure 2. Advanced Camera Settings
3. Select Motion Detection first and click the Area Settings button to enter the Motion Detection Area
and Sensitivity settings interface.
4. As shown in Figure 3, the Motion Detection area allows you to mask areas you want to configure
motion detection. The maximum area can be set to be full screen. You can left click mouse, hold and
