52

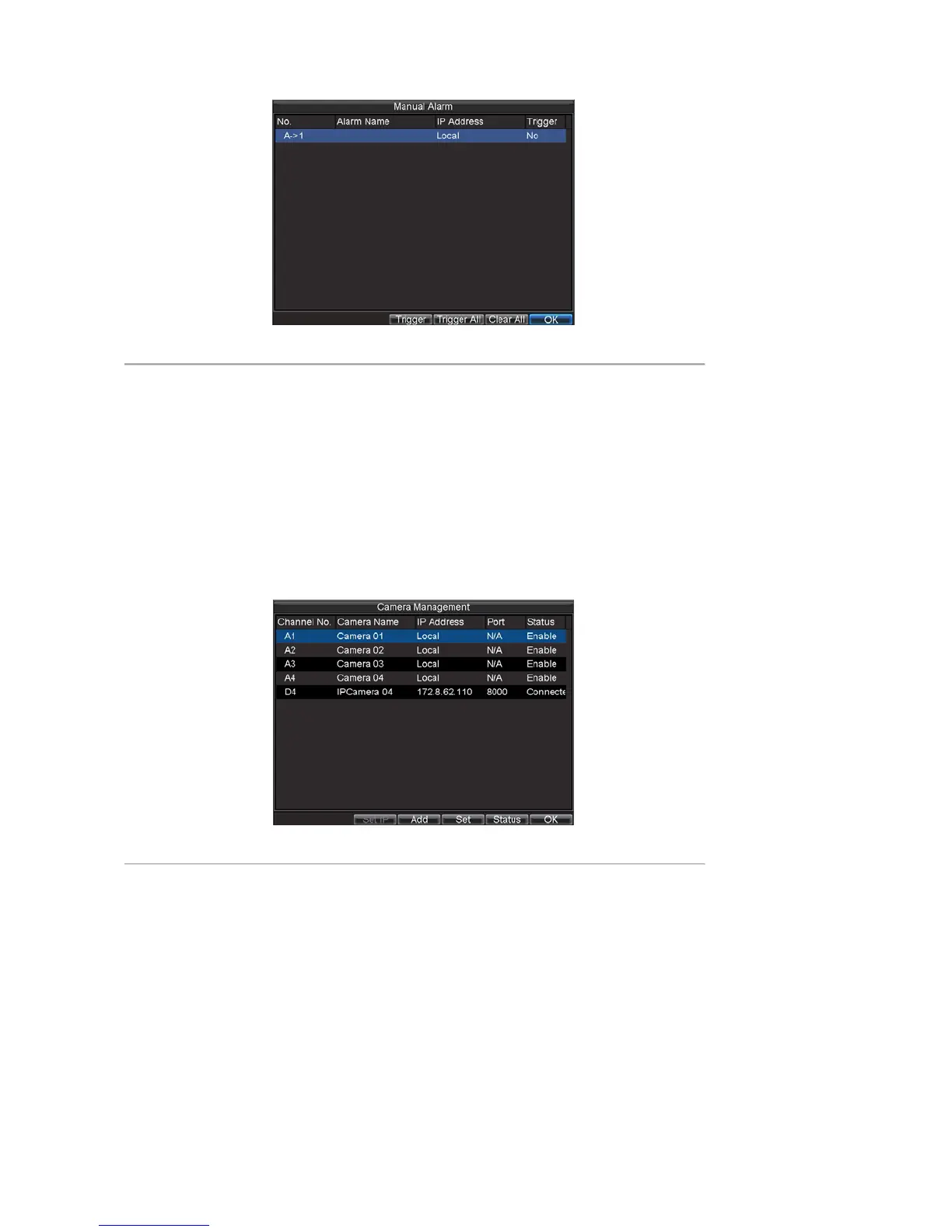

Figure 11. Manual Alarm Menu
2. Configure the following settings in the Manual Alarm menu:
• Trigger: Select an alarm from the list and click Trigger to trigger its output.
• Trigger All: Trigger all alarm outputs at once.
• Clear All: Stop all alarm outputs at once.
3. Select OK to return to the previous menu.
Detecting Video Loss
Your DVR can be set up to detect video loss and trigger an action. To set up video loss detection:
1. Click Menu > Setting > Camera to enter Camera Management menu, shown in Figure 12.
Figure 12. Camera Management Menu
2. Select camera under Channel No. to configure video loss detection for and click the Set button.
3. Select the Advanced tab.
4. Check the Video Loss Detection checkbox to enable this feature, as shown in Figure 13.
