75

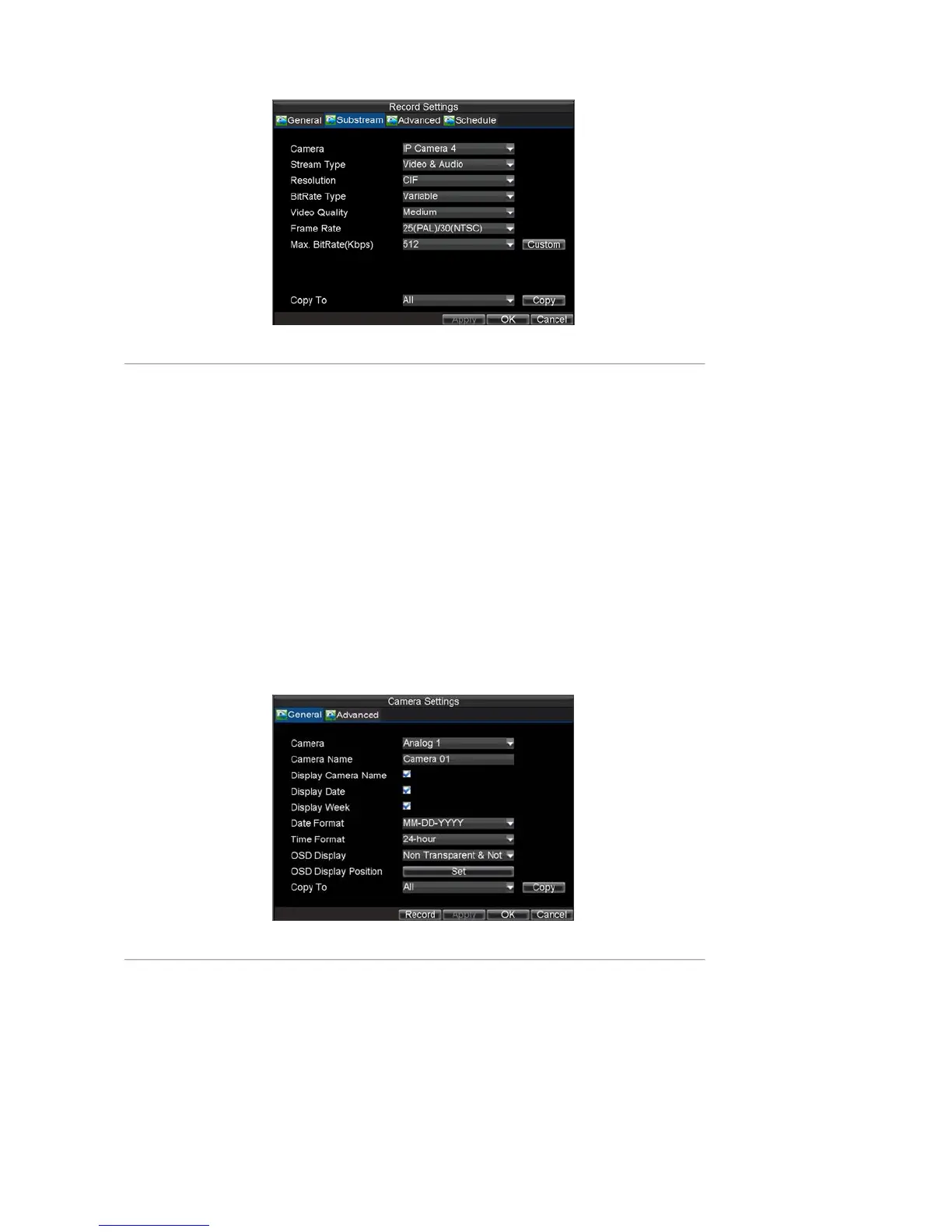

Figure 6. Sub stream Settings Menu
6. Configure sub stream settings. Sub stream is only used for live preview.
7. Click OK to save and exit out of menu.
Note:
The quality of resolution, frame rate and bit rate depends on the performance of the IP camera.
Configure OSD Settings
On Screen Display (OSD) settings can be configured in the Camera Management menu. The OSD is shown in each
display during Live Preview mode and includes the time and date as well as the camera name.
To configure OSD settings:
1. Click Menu > Setting > Camera to enter the Camera Settings menu, shown in Figure 1.
2. Select channel to set up OSD settings under Channel No., and click the Set button.
Note:
DS-7604NI-S/M and DS-7604NI-S models provide no analog camera connection; please
select IP cameras for configuration.
3. Configure desired OSD settings, as shown in Figure 7.
Figure 7. OSD Settings Menu
