13
Figure 5. Soft Keypad
The buttons on the soft keyboard represents:
Lowercase: Designates lowercase input is being used.
Uppercase: Designates uppercase input is being used.
Switch to Lowercase: Switch to lowercase input.
Switch to Uppercase: Switch to uppercase input.
Number: Designates number input is being used.
Symbols: Switch to symbols input.
Backspace: Delete the character in front of the cursor.
Enter: Confirm selection.
ESC: Exit out of Soft Keyboard.
Figure 6. Soft Keyboard Buttons
Rear Panel

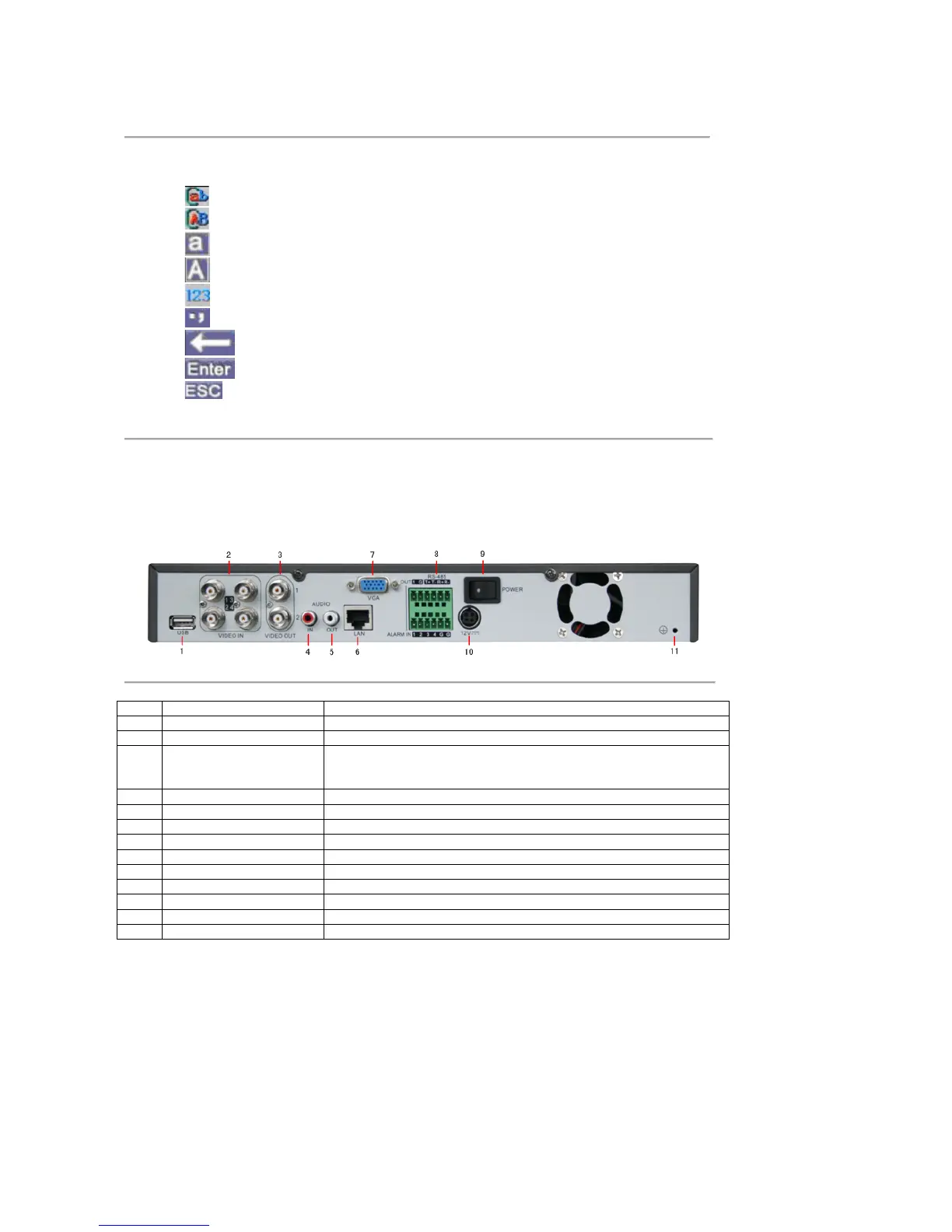

Figure 7. Rear Panel of DS-7604HI-S
No. Item Description
1 USB Interface Connector for USB devices
2 VIDEO IN BNC connectors for analog video input
3 VIDEO OUT BNC connector for video output. If VGA output has been connected, then the
VIDEO OUT port provides no output.
VIDEO OUT1 is main video out, and VIDEO OUT2 is spot video out.
4 AUDIO IN RCA connectors for analog audio input
5 AUDIO OUT RCA connector for audio output
6 LAN Connector for LAN (Local Area Network)
7 VGA DB15 connector for VGA output. Display local video output and menu
8 RS-485 Interface Connector for RS-485 devices. T+, T- pin connects to PTZ
ALARM IN Connector for alarm input (up to 4 channels)
ALARM OUT Connector for alarm output (1 channel)
9 POWER Switch for turn on/off the device
10 12V 12VDC power supply
11 GND Ground(needs to be connected when DVR startup)
