9

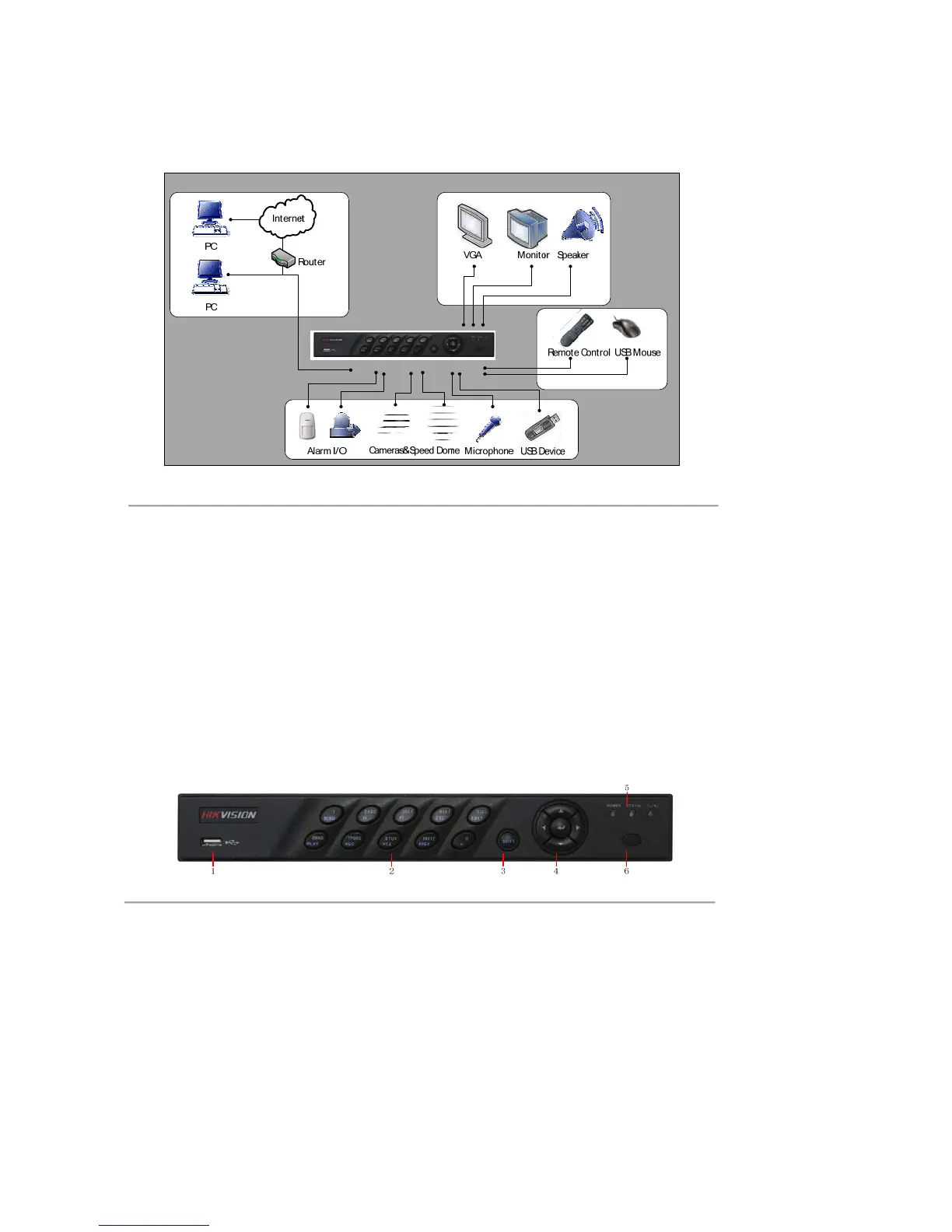

Product Application Diagram
Figure 2. Product Application Diagram
Note:
DS-7604NI-S/M and DS-7604NI-S models provide no analog camera connections, and DS-7604NI-S/M
model has no VGA output.
Operating Your DVR
There are numerous ways to navigate and operate your DVR. You may use the Front Panel Controls, the included IR
(Infra-Red) Remote, a Mouse and the Soft Keyboard.
UsingtheFrontPanelControls
Your DVR comes with built-in front panel controls, as shown in the following figure:
Figure 3. DVR Front Panel Controls
The controls on the front panel include:
1. USB Interface: Connects USB mouse or USE flash memory devices
2. Compound Buttons:
• 1Main Menu: (1) Enter numeral “1”; (2) Access the main menu interface
• 2ABC/F1: (1) Enter numeral “2”; (2) Enter letters “ABC”; (3) The F1 button when used in a list
