Scheduling a Recording
The Schedule allows you to set up flexible recording schedules for daily or weekly recording.
To set up a recording schedule:
1. Click Menu > Setting > Record to enter the Record Settings menu.
2. Select the Schedule tab to enter the Schedule dialog box, shown in Figure 4.

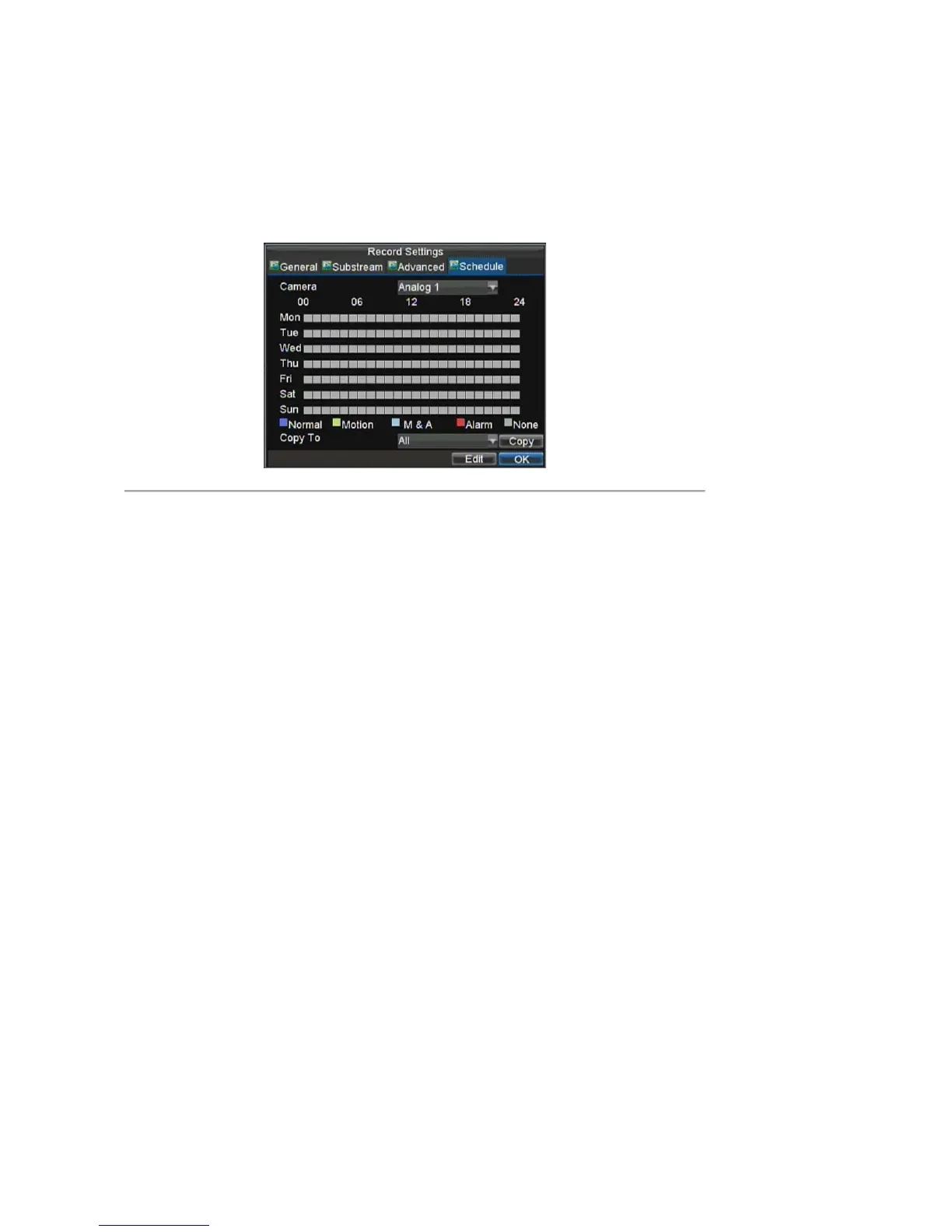

Figure4. Scheduling a Recording Settings
3. Select Camera you want to configure recording schedule.
4. Click the Edit button to enter the Schedule settings dialog box.
5. Click and check Enable Schedule checkbox.
6. Select the day you want to set up the schedule or select All Week to record for entire week.
7. Click All Day to enable recording for entire day, or select different periods for each day. Up to 8 time
periods can be scheduled.
Note:
The time periods scheduled cannot be overlapped with each other.
8. Select recording Type. Recording type can be selected to scheduled or triggered by motion detection
and/or alarm. For more specific settings about motion detection and alarm recordings, please refer to
the Configuring Alarms.
9. Click the OK button to finish configuration.
10. Repeat steps 3-9 for other cameras or copy settings from one schedule to the others under the Copy To
item.
11. Click OK to finish configuration and save the schedule settings.
Note:
The Event encoding parameters will take effect when motion detection or alarm happens. The Normal
encoding parameters will take effect when there are no events happening.
Starting a Manual Recording
A manual recording can be enabled at any time by means of the following configuration:
1. Press the REC button on the front panel to access the Manual Record dialog box, shown in Figure 5.
