34
4. Click the Property button to enter the Property Settings dialog box.
5. Set HDD Status to Redundancy, shown in Figure 11.
6. Click OK to save settings and return to the previous menu.
Note:
1. When the selected HDD is set to redundancy, it is used for redundant recording only.
2. Make sure at least one HDD installed in DVR has been set to R/W (read/write).

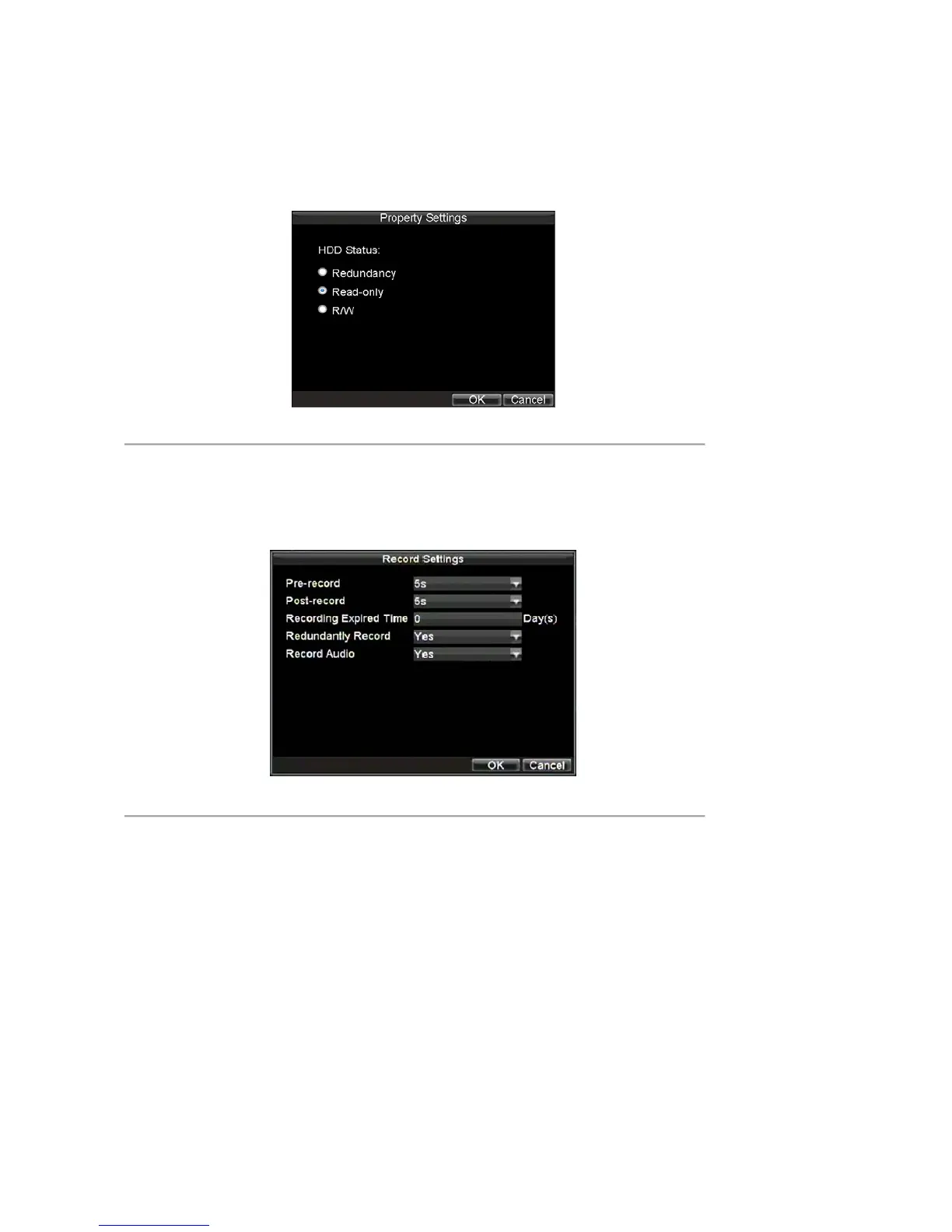

Figure 11. HDD Property Settings
7. Click Menu > Setting > Record Setting to access the Record Settings dialog box.
8. Click the General tab.
9. Select the Camera to be used for redundancy.
10. Move the cursor to More Settings, and click the Set button to enter the additional settings for the
selected camera (shown in Figure 12).
Figure 12. Additional Record Settings
7. Set Redundantly Record to Yes.
8. Click OK to save settings.
9. Repeat steps 8-12 for other cameras you want to set redundant recording.
