54

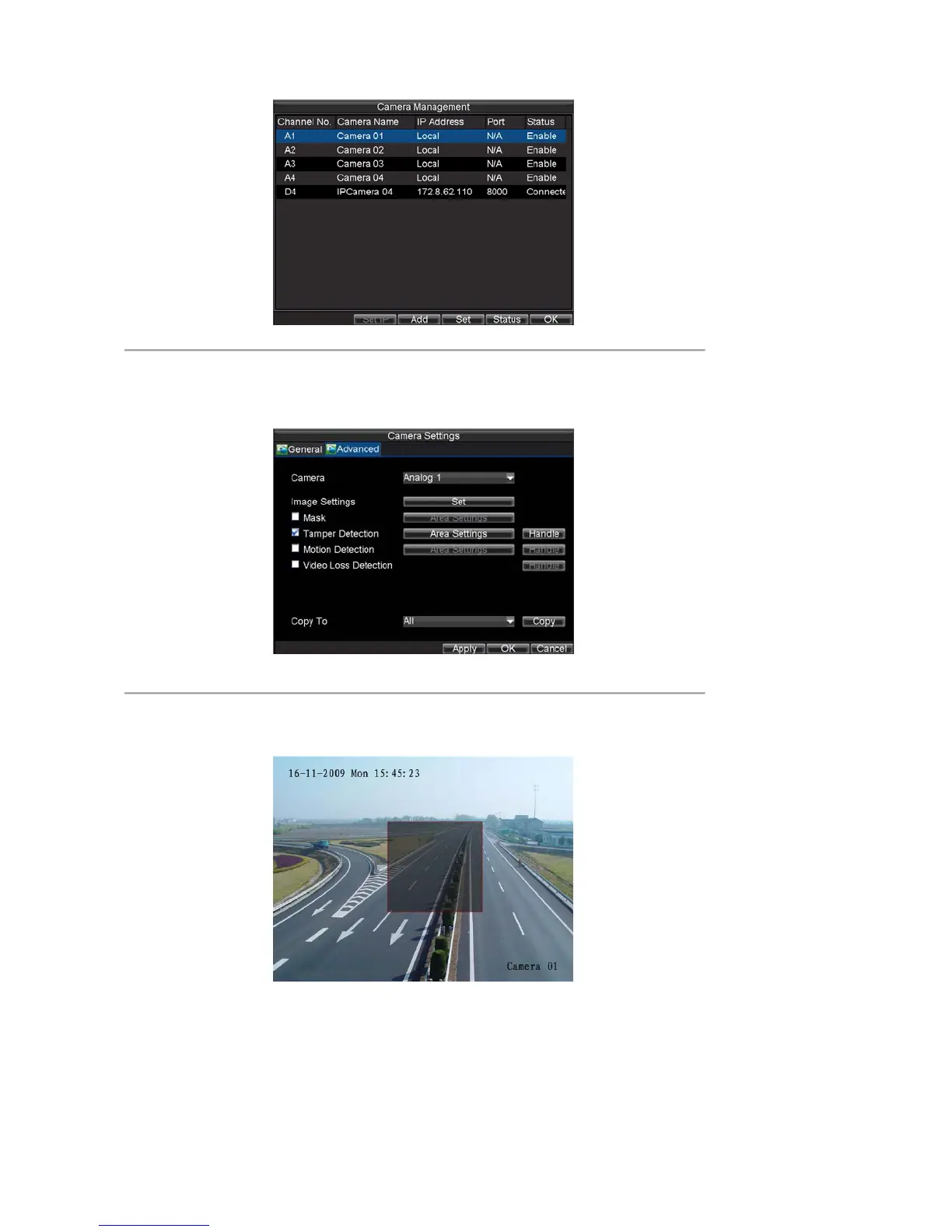

Figure 15. Camera Management Menu
2. Select camera under Channel No. to configure video loss detection for and click the Set button.
3. Select the Advanced tab.
4. Check the Tamper Detection checkbox, as shown in Figure 16.
Figure 16. Camera Settings Menu
5. Click the Area Settings button to enter the area settings menu.
6. Set tampering area, as shown in Figure 17. Only one tampering area can be set, with the full screen
being the maximum area.
