To set up and call PTZ patrols:
1. Enter the PTZ Control interface, shown in Figure 3, by selecting PTZ from the mouse menu or
clicking the PTZ button on the front panel.
2. Select the Patrol button to enter the Patrol Management menu, shown in Figure 5.

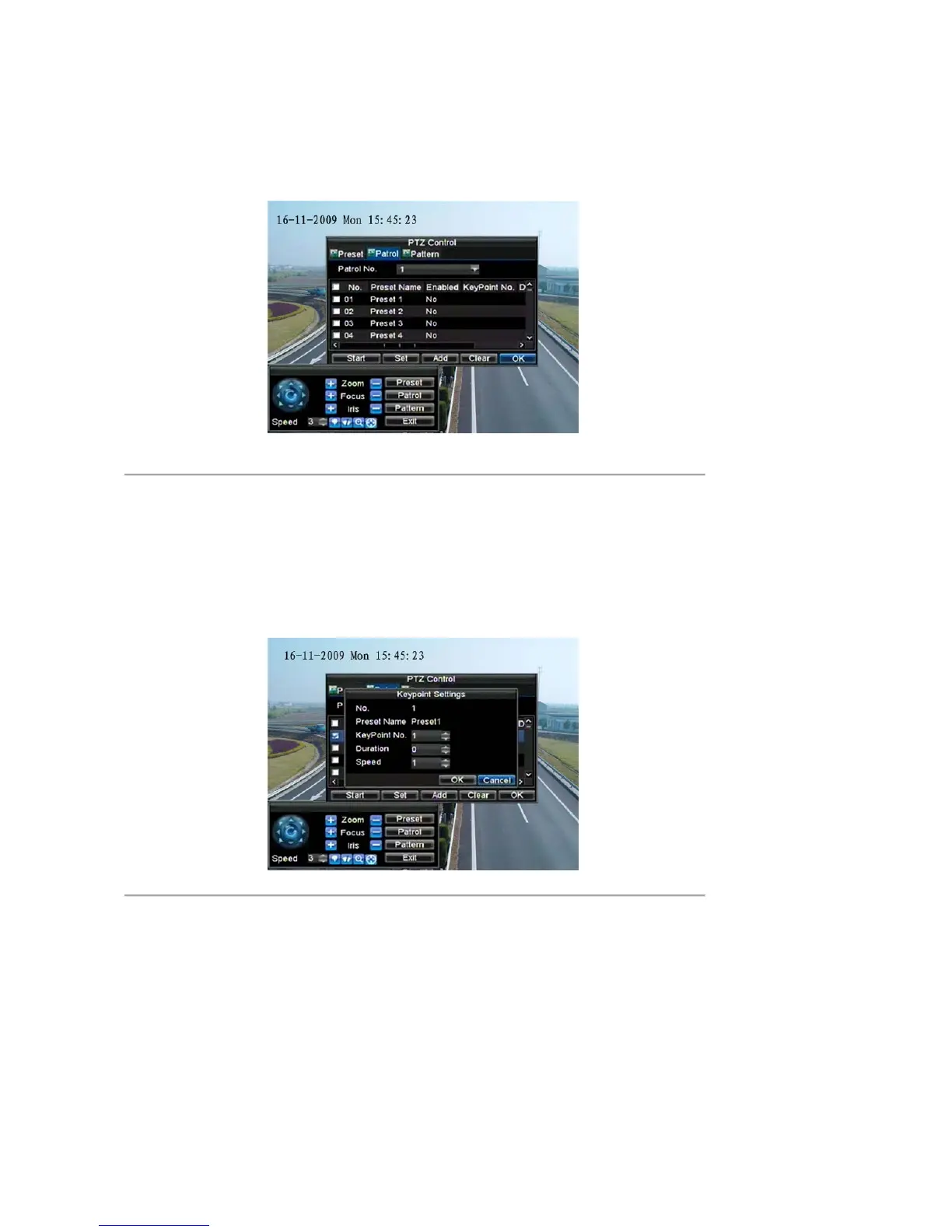

Figure 5. Patrol Management Menu
3. In the Patrol Management menu, you may:
• Configure Patrol:
1. Select a Patrol Number to set.
2. Select valid presets (See Customize Presets) and click the Set button to enter the Patrol
configuration menu. A sequence should have at least 2 valid presets.
3. Set the Key Point No., Duration, and Speed (Figure 6). The Key Point No. determines the
order at which the PTZ will follow while cycling through the patrol. The Duration refers to
the time span to stay at the corresponding key point. The Speed defines the rate at which the
PTZ will move from one key point to the next.
Figure 6. Patrol Configuration Menu
4. Click OK to return to Patrol Management menu and repeat steps 2-3 to configure other key
points.
5. After all key points have been configured, click OK to save and exit menu.
• Clear Patrol:
1. Select a valid Patrol Number.
