HIKVISION DS-81 Series User Manual

Storage System User Manual
36

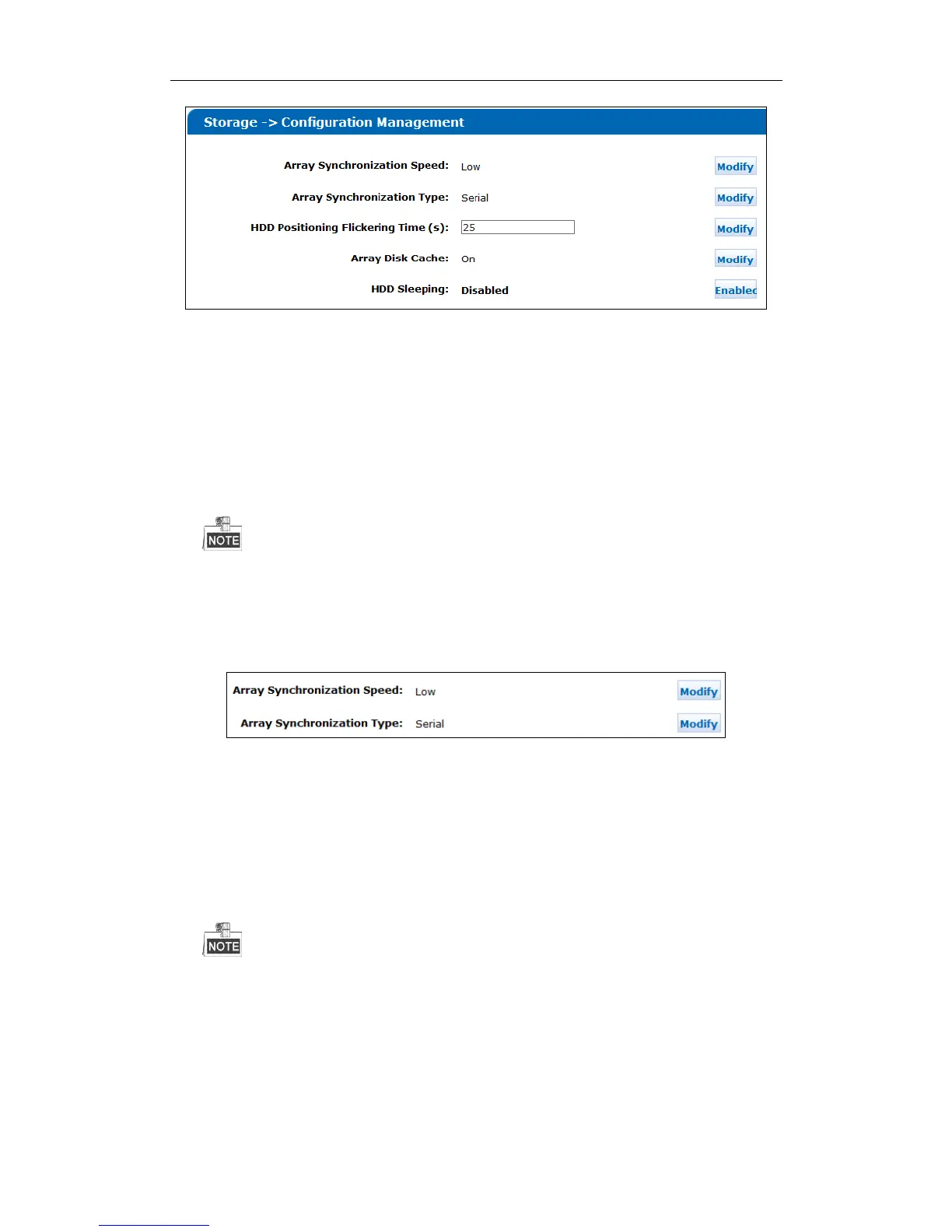

Figure 4. 17 Configurations
4.5.1 Synchronization Speed and Type
Purpose:
Array synchronization speed and synchronization type is editable.
Steps:
1. Click Modify of Array Synchronization Speed.
2. Select Array Synchronization Speed as High, Medium, Low, or None.
The faster the speed is, the highest the internel IO percentage is.
3. Click OK.
4. Click Modify of Array Synchronization Type.
5. Select Array Synchronization Type as Serial or Parallel.
6. Click OK.
Figure 4. 18 Synchronization Speed and Type
4.5.2 Flickering Time
Purpose:
When positioning an HDD, the HDD bottom indicator keeps flickering for the set time.
Steps:
1. Enter a number as flickering time in HDD Positioning Flickering Time (s).
Valid flickering time ranges from 5 to 300 and the unit is second.
2. Click Modify.
