NVR User Manual 061220NA 33

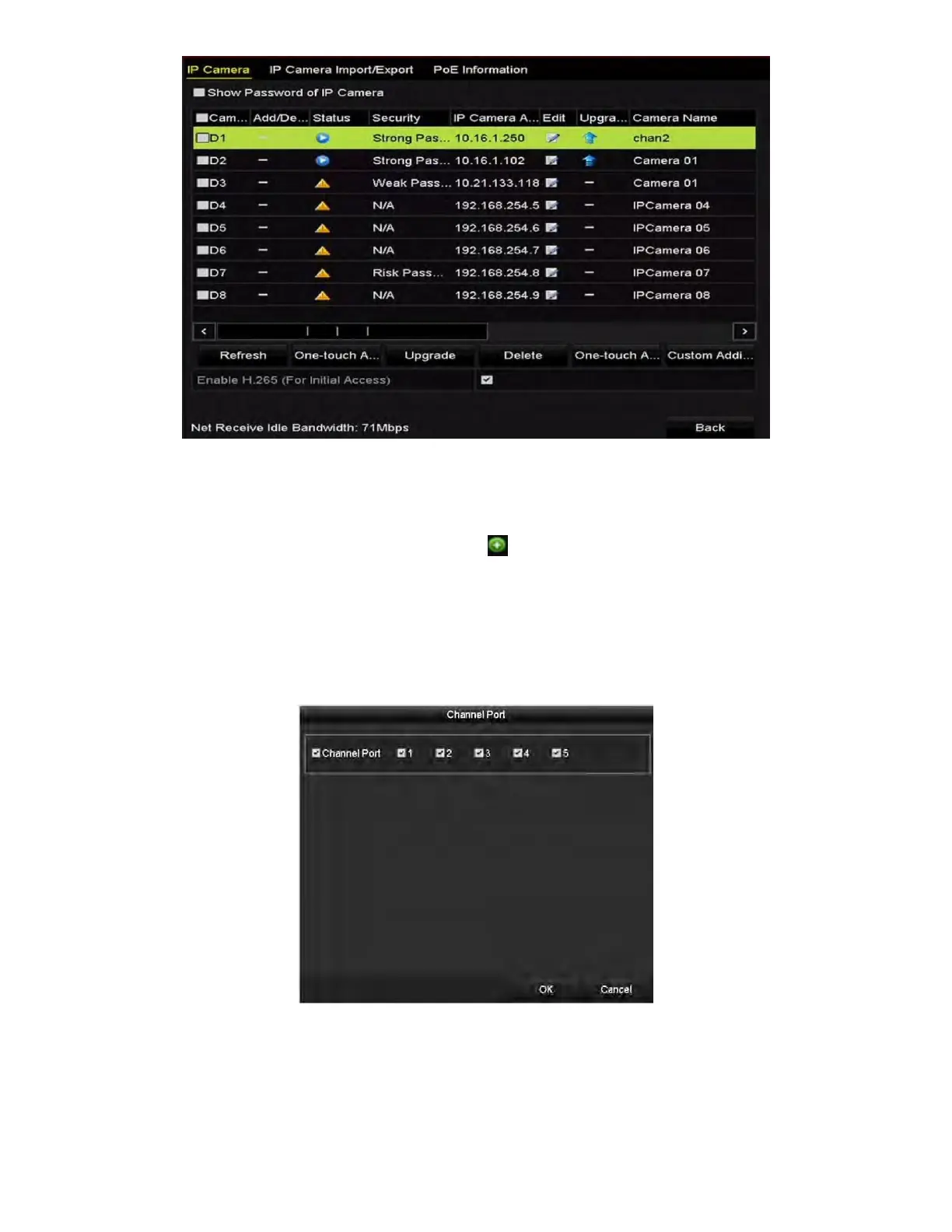

Figure 31, Adding IP Camera Interface
2. Online cameras in the same network segment will be detected and displayed on the camera list.
3. Select the IP camera from the list and click the button to add the camera or click the One-
touch Adding button to add all cameras (with the same login password) from the list.
NOTE: Make sure the camera to add has already been activated.
4. (Encoders with Multiple Channels Only) Check the Channel Port checkbox in the pop-up window, as
shown in the following figure, and click OK to add multiple channels.
Figure 32, Selecting Multiple Channels
• OPTION 3
1. On the IP Camera Management interface, click the Custom Adding button to pop up the Add IP
Camera (Custom) interface.
To Next Page
